SlimLine 38 Cubic
SlimLine 38 ‘Cubic’ window
Light, Elegance and Comfort

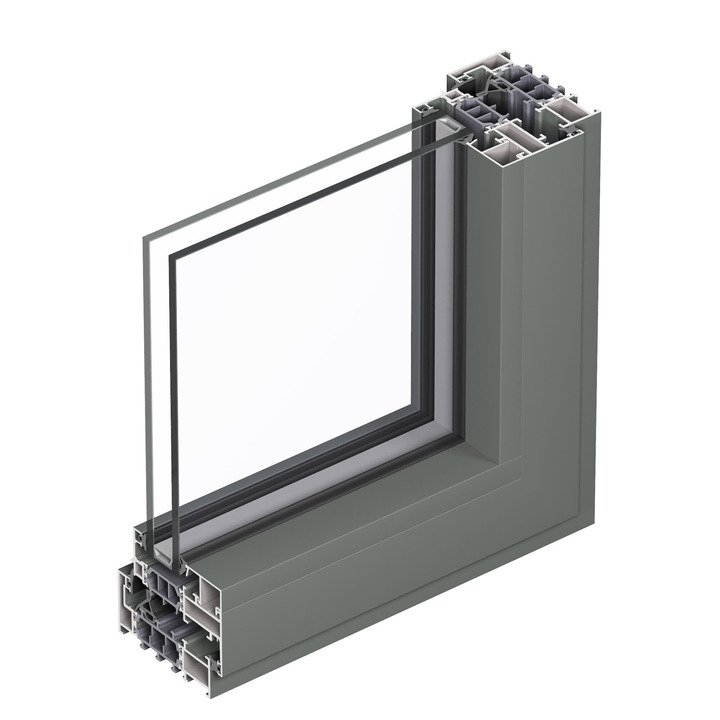

Slim Line 38 Cubic is a highly insulated system for inward and outward opening windows and doors. The Cubic design features a cubistic look and feel, ideally suited for modern architecture and renovation of steel-framed windows, respecting the original design but offering a thermally improved solution.
The SL 38 system is available in 3 different minimalistic design variants, Classic, Ferro and Cubic, to perfectly match the architectural aspect of the building. The windows and doors can be provided with double and triple glazing without losing the ultra-slim look.
In combination with its superior insulation capabilities, the system provides the perfect harmony between durable material, clean design and demanding architectural challenges.
Technical information
Min. Visible width frame: inward opening 38.5 mm
Min. Visible width frame-vent: inward opening 72 mm

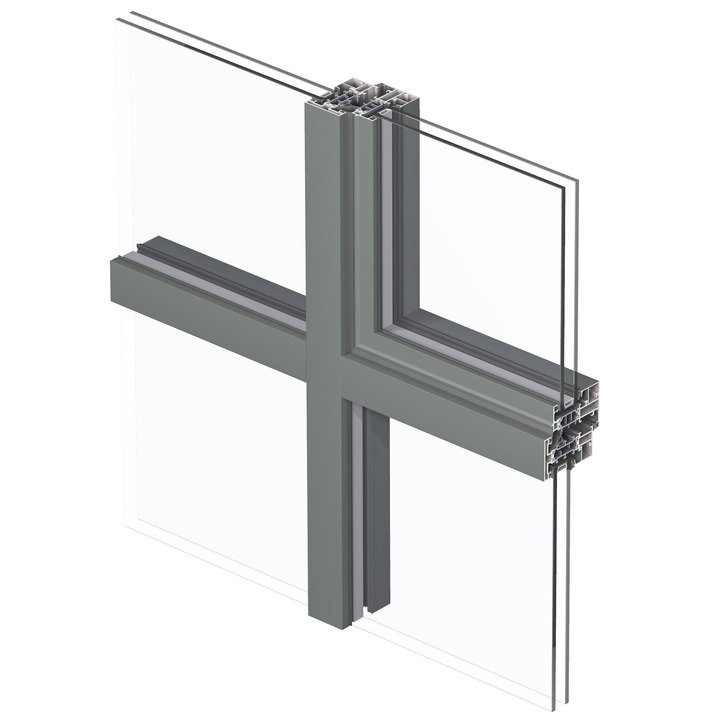

Min. Visible width T-profile 48 mm
Max. height vent 2100 mm
Max. width vent 1300 mm
Max. weight vent (element) 170 kg
Overall system depth frame 76 mm
Overall system depth vent 75 mm
Rebate height 13.5 mm
Min. Glass thickness 16 mm
Max. Glass thickness 55 mm
Min. Glass thickness vent 4 mm
Max. Glass thickness vent 55 mm
Glazing method Dry glazing with EPDM or neutral silicones
Thermal break Fibreglass Reinforced Polyamide Strips
Comfort
Air tightness max. test pressure 4 (600 Pa)
Water tightness 9A (600 Pa)
Wind load resistance C3 (1200 Pa)
Acoustic performance 45 (-1,-5) dB
Safety
Burglar resistance RC2/WK2
Energy
Thermal insulation (Uf) 1,9 W/m²K
