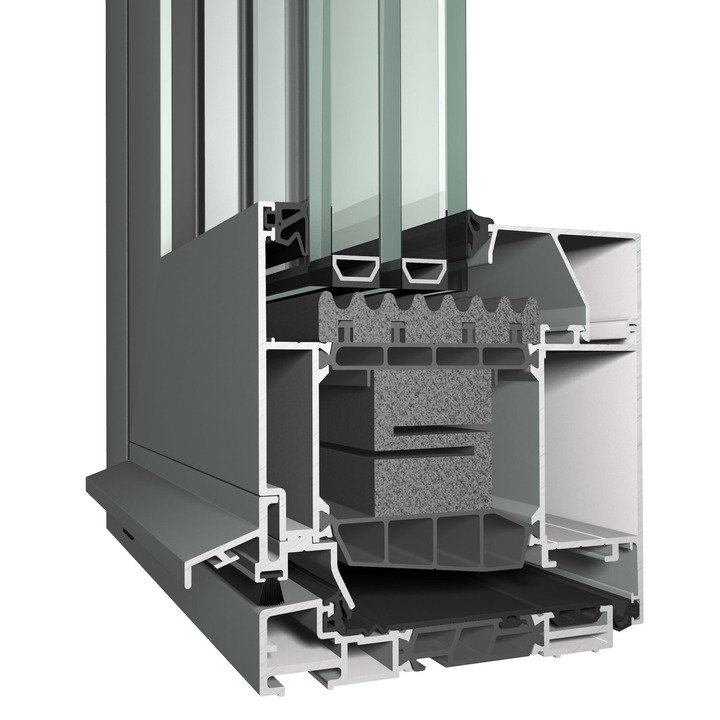

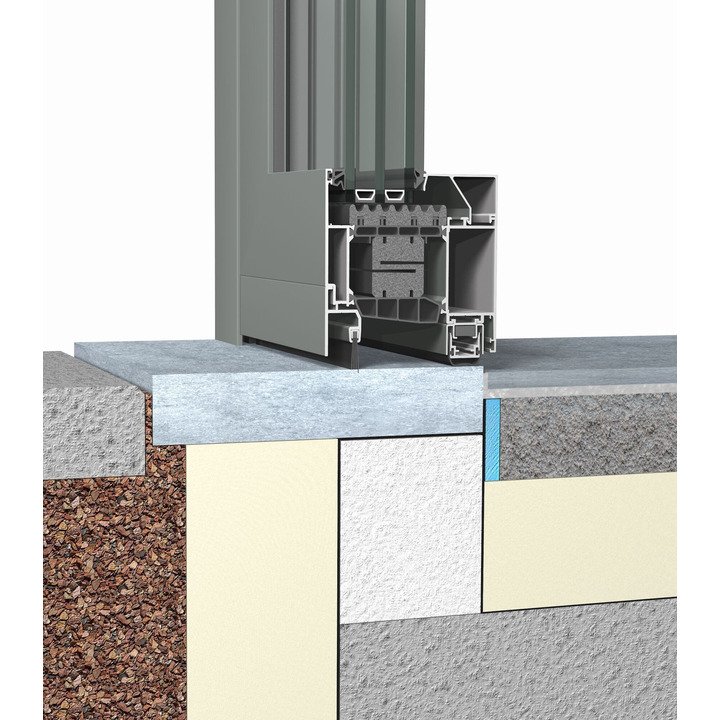

MasterLine 10 Balcony Door
Rebate Doors
No compromise
MasterLine 10 window doors are available as single or double doors, both inward and outward opening. It is possible to use window or door hardware on the doors, in this way it is possible to open and lock the doors from both inside and outside as well. These windows doors are design for low energy and passive houses.
As this 10 series is build on the MasterLine platform, it shares many of the same articles as in MasterLine 8 window doors: corner cleats, glazing gaskets and also the same central gasket ensuring the same performances, production efficiency and robustness. Three diffirent design variants are offered: Functional, Renaissance and Deco to suite any architectural style.
Technical information
Min. Visible width frame-vent: inward opening 134 mm
Min. Visible width frame: outward opening 27 mm
Min. Visible width frame-vent: outward opening 145 mm
Min. Visible width T-profile 87 mm
Max. height vent 2400 mm
Max. width vent 1000 mm
Max. weight vent (element) 130 kg
Overall system depth frame 97 mm
Overall system depth vent 107 mm
Rebate height 27 mm
Min. Glass thickness 20 mm
Max. Glass thickness 78 mm
Glazing method Dry glazing with EPDM or neutral silicones
Comfort
Air tightness max. test pressure 4 (600 Pa)
Water tightness 8A (450 Pa)
Wind load resistance C3 (1200 Pa)
Energy
Thermal insulation (Uf) 0,79 W/m²K
