CS 77 Softline
Concept System 77 ‘Softline’ window door
Optimised safety and comfort

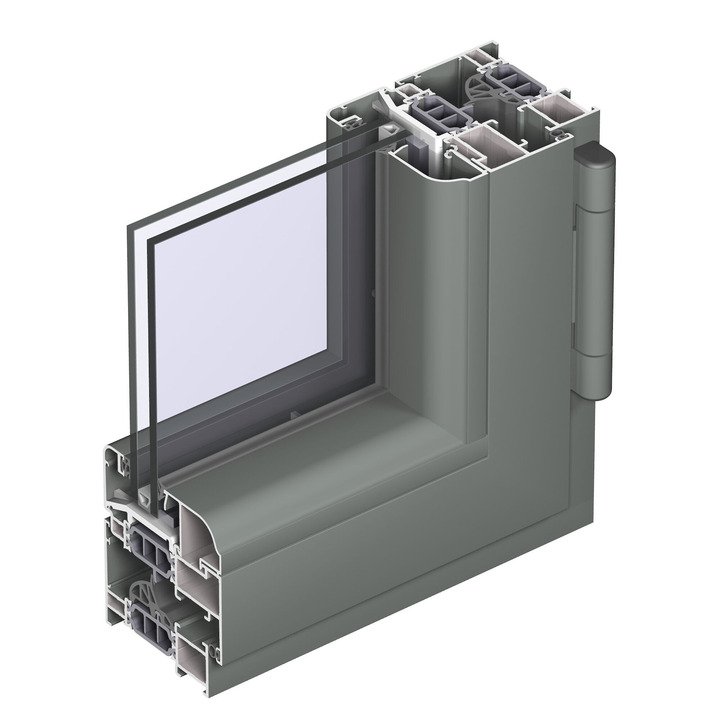

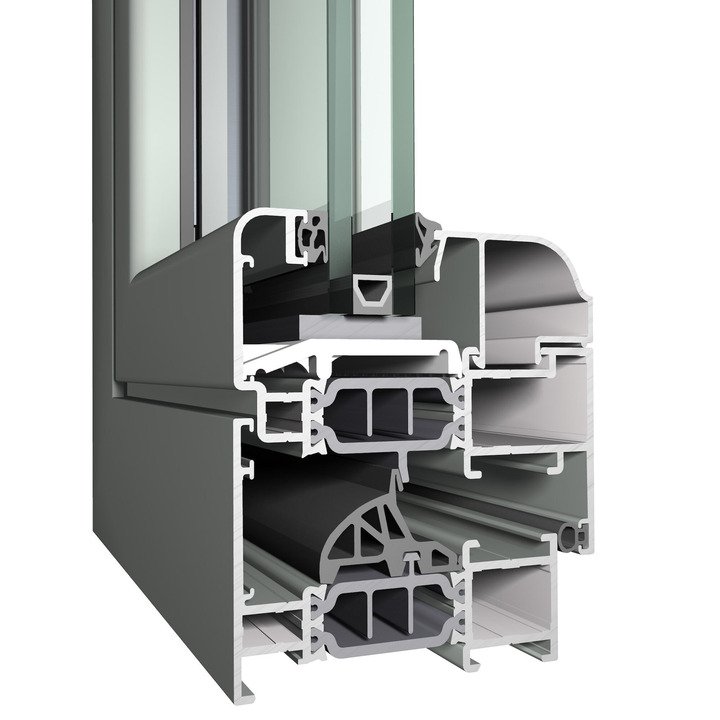

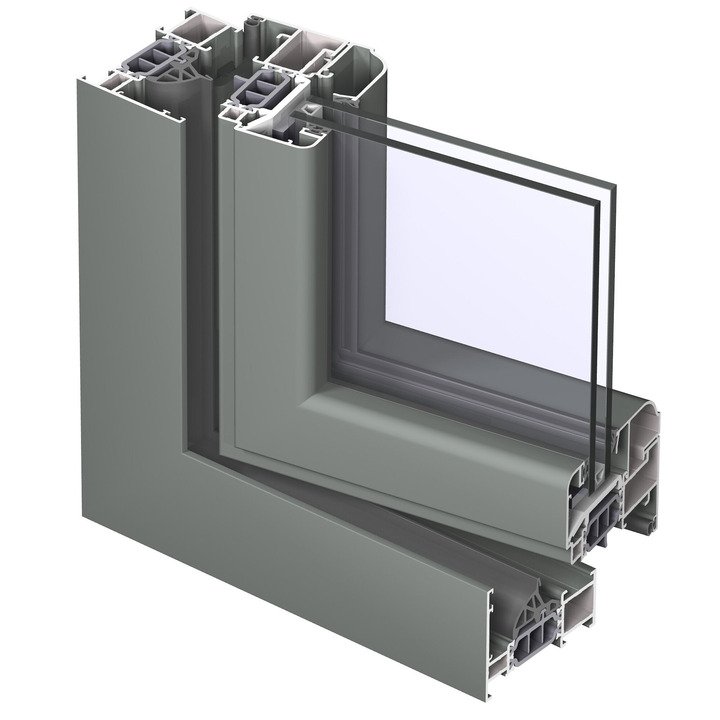

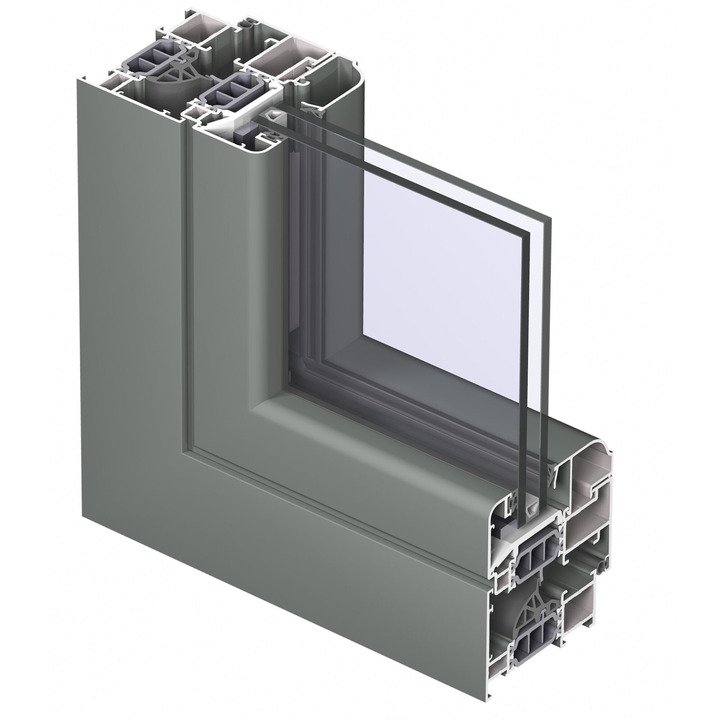

Concept System® 77 Softline window doors feature smooth, rounded edging of the aluminium profiles. The Softline window doors are optimised towards design and comfort.

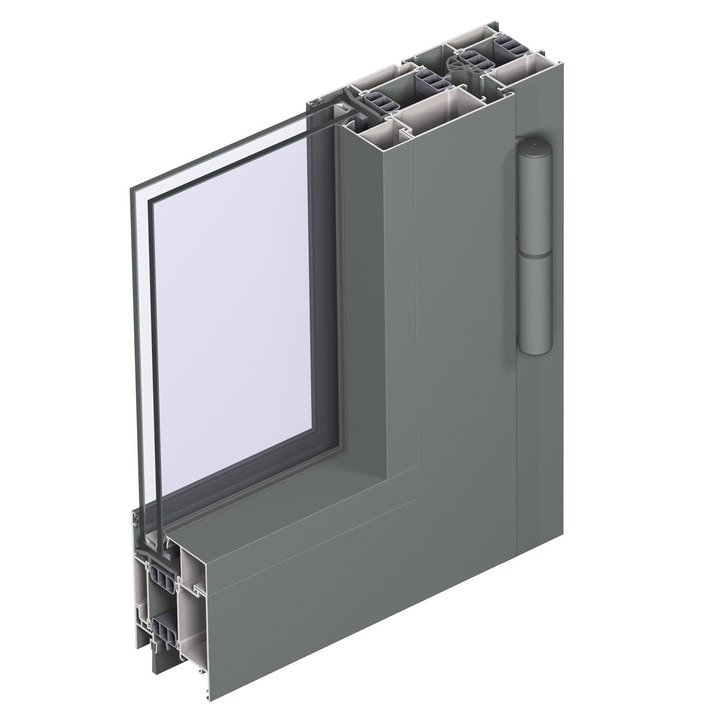

The window doors are available with two different threshold solutions: brushes or with an automatic door latch.
Technical information
Min. Visible width frame: inward opening 68 mm
Min. Visible width frame-vent: inward opening 150 mm
Min. Visible width T-profile 76 mm
Max. height vent 3000 mm
Max. width vent 1400 mm
Overall system depth frame 68 mm
Overall system depth vent 68 mm
Rebate height 25 mm
Min. Glass thickness 4 mm
Max. Glass thickness 52 mm
Min. Visible width frame-vent: inward opening 150 mm
Min. Visible width T-profile 76 mm
Max. height vent 3000 mm
Max. width vent 1400 mm
Overall system depth frame 68 mm
Overall system depth vent 68 mm
Rebate height 25 mm
Min. Glass thickness 4 mm
Max. Glass thickness 52 mm
Comfort
Air tightness max. test pressure 4 (600 Pa)
Water tightness 7A (300 Pa)
Wind load resistance C2 (800 Pa)
