HYLINE 50

Winco > Our products > Sliding Minimal Systems > HYLINE 50

HYLINE 50

The ultimate minimalist system

Maximum Width
[CUSTOM]

Maximum Height
6000mm

Maximum box for Glass
48mm

Maximum Weight
1000Kg/ML

Glazing Maximum Area
18m2

Opening Options
Customized, Automatic, Motorized

The ultimate minimalist system

HYLINE 50

This minimalist system is suited for jobs that require extreme performances. It was developed to use double or triple glass up to 48mm thickness, up to 6m height or a glass surface of up to 28m2. This robust window offers the best acoustic and thermal performance. Developed with sophistication and attention to design in mind, this system is characterized by the smallest central mullion in the market and an integrated floor option that fully hides the frame, resulting in a obstacle-free threshold. This system allows the inclusion of blackouts, blinds, screen in the interior glass and fly screens.

System details

The HYLINE systems have a set of specifications that are important for a quality work at a higher level of demand. For perfect framing systems, details do make a difference.

LARGE GLASS SURFACES

Large glass surfaces, with capacity up to 3.5m in height, totaling 9m². It is possible to move 500 kg of window with a simple touch.

HYLINE’s Integrated Floor System

The HYLINE System allows different types of finishings for the rims of pavement. It is possible to use the same finishing throughout the whole area where it is inserted.

Blackout System

It allows, on double glazing, shading devices such as blackouts, screens and blades, which can be electrically operated. High quality system without obligatory maintenance.

Personalized Locks

A wide choice of possible finishings, including diamonds.

GLASSES

Possibility of installing triple glazing and armored glass.

Blade System

It allows, on double glazing, shading devices such as blades and screens that can be electrically operated. High quality system without obligatory maintenance.

Electromagnetic Lock

Possible integration of an electromagnetic lock for better security and control.

Multi-point Locking System

Option to lock with key on the wall. Invisible aluminium frame.

TYPES OF OPENING

Possibility of Monorail, Birail, Trirail or unlimited and central opening.

Built-in floor

Level floor solution with visible bearings with uniform weight distribution system.

Integrated Lock

You can integrate a key lock, thus ensuring greater security and control.

Shutters

In addition to glass, marble, wood, fly screen or aluminum panels may also be an option.

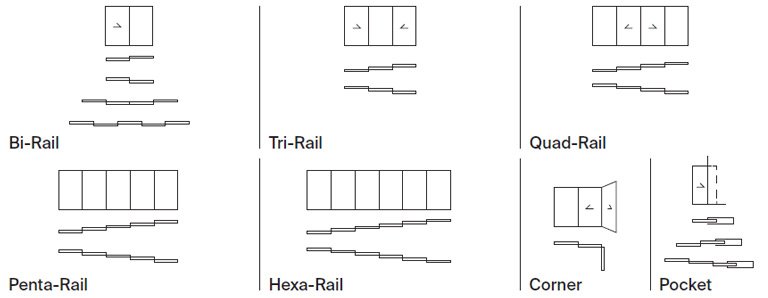

Indicative Opening Types
