CW 50 Opening Elements

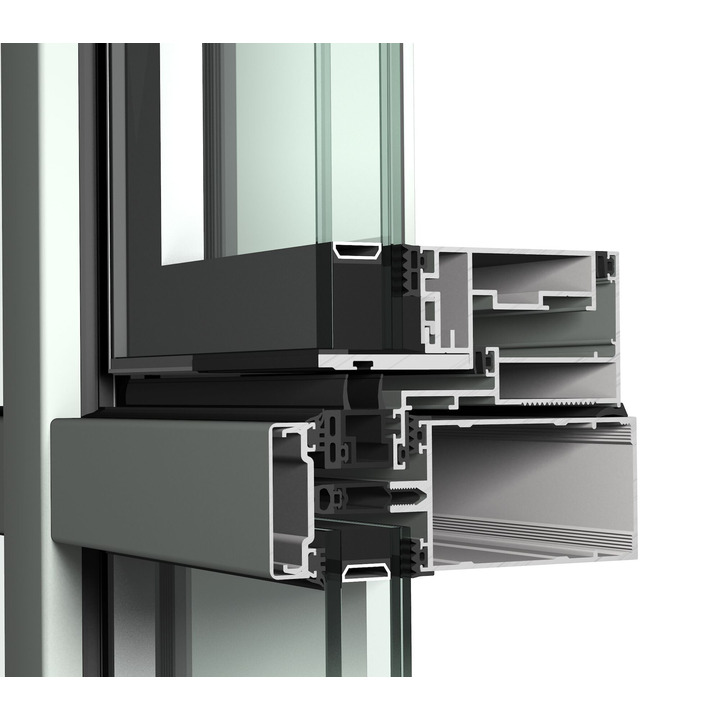

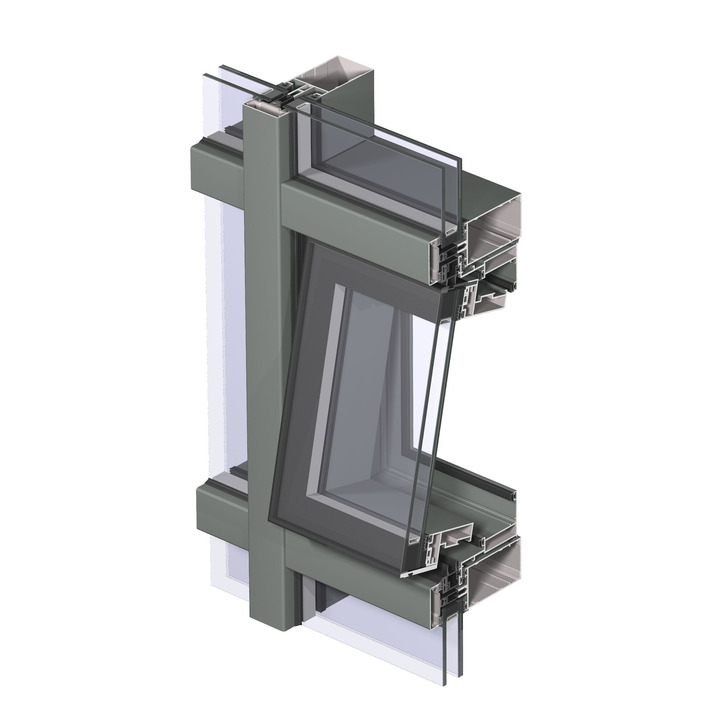

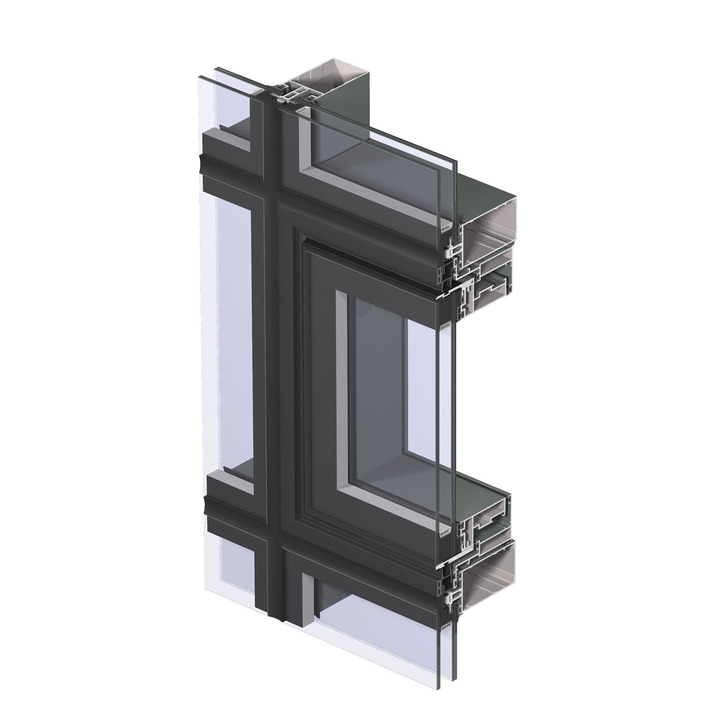

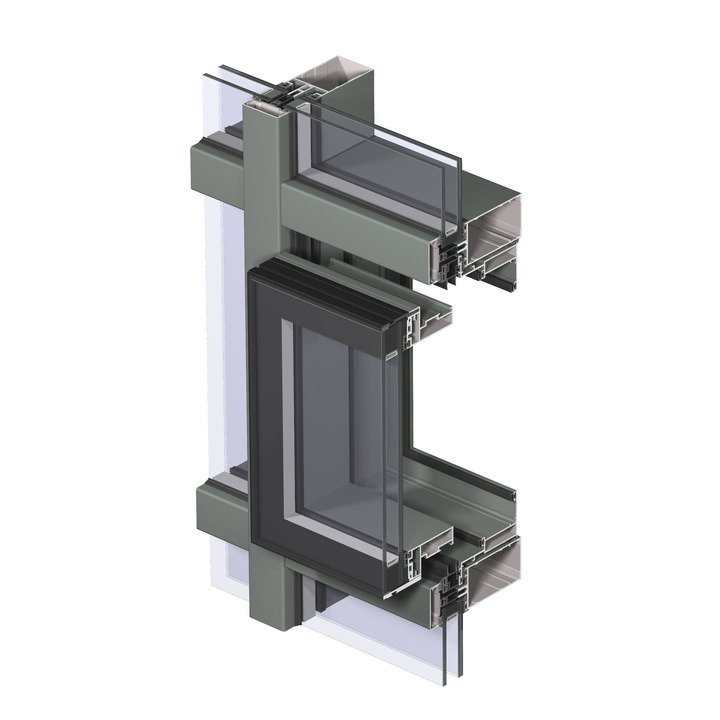

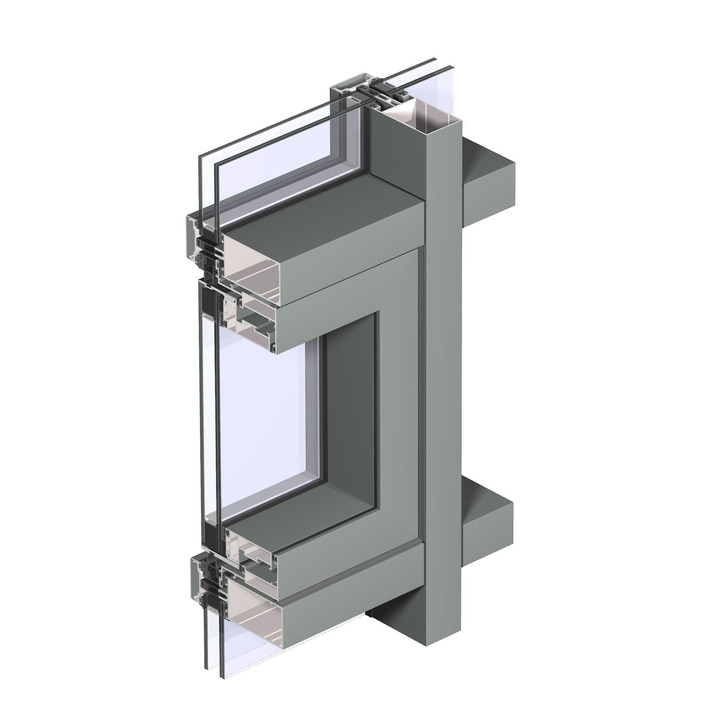

The outward opening elements for CW have been completely redesigned. The elements are now better thermally insulated, capable of reaching the maximum dimensions in all variants, reach better performances overall, can be fitted with triple glass in both glazing bead and structural glazed variants, can be combined with all CW 50 variants and feature an improved production ease and speed.
Technical information
Max. height vent 2500 mm
Max. width vent 2000 mm
Max. weight vent (element) 180 kg
Min. Glass thickness 24 mm
Max. Glass thickness 62 mm
Glazing method Dry glazing with EPDM or neutral silicones
Thermal break Fibreglass Reinforced Polyamide Strips
Max. width vent 2000 mm
Max. weight vent (element) 180 kg
Min. Glass thickness 24 mm
Max. Glass thickness 62 mm
Glazing method Dry glazing with EPDM or neutral silicones
Thermal break Fibreglass Reinforced Polyamide Strips
Comfort
Air tightness max. test pressure 4 (600 Pa)
Water tightness E1500 (1500 Pa)
Wind load resistance C5 (2000 Pa)
Energy
Thermal insulation (Uf) 1.5 W/m²K W/m²K
