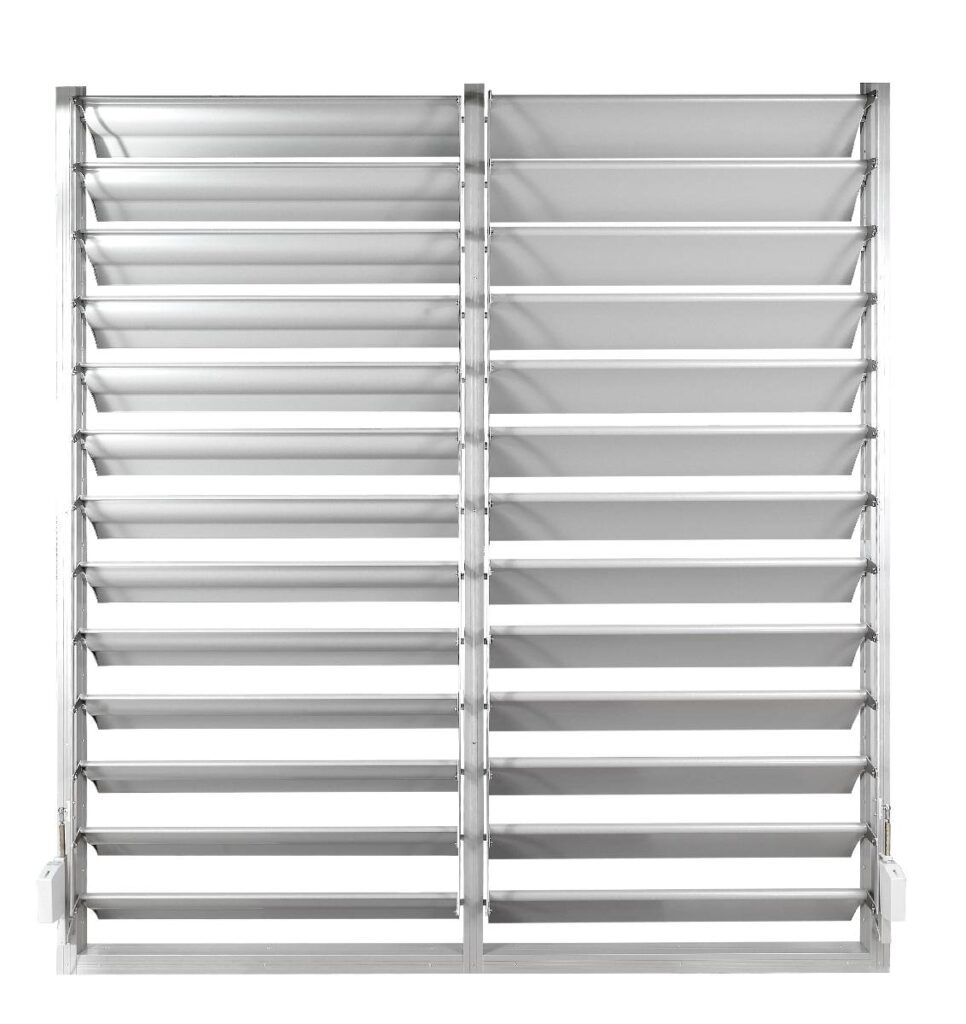

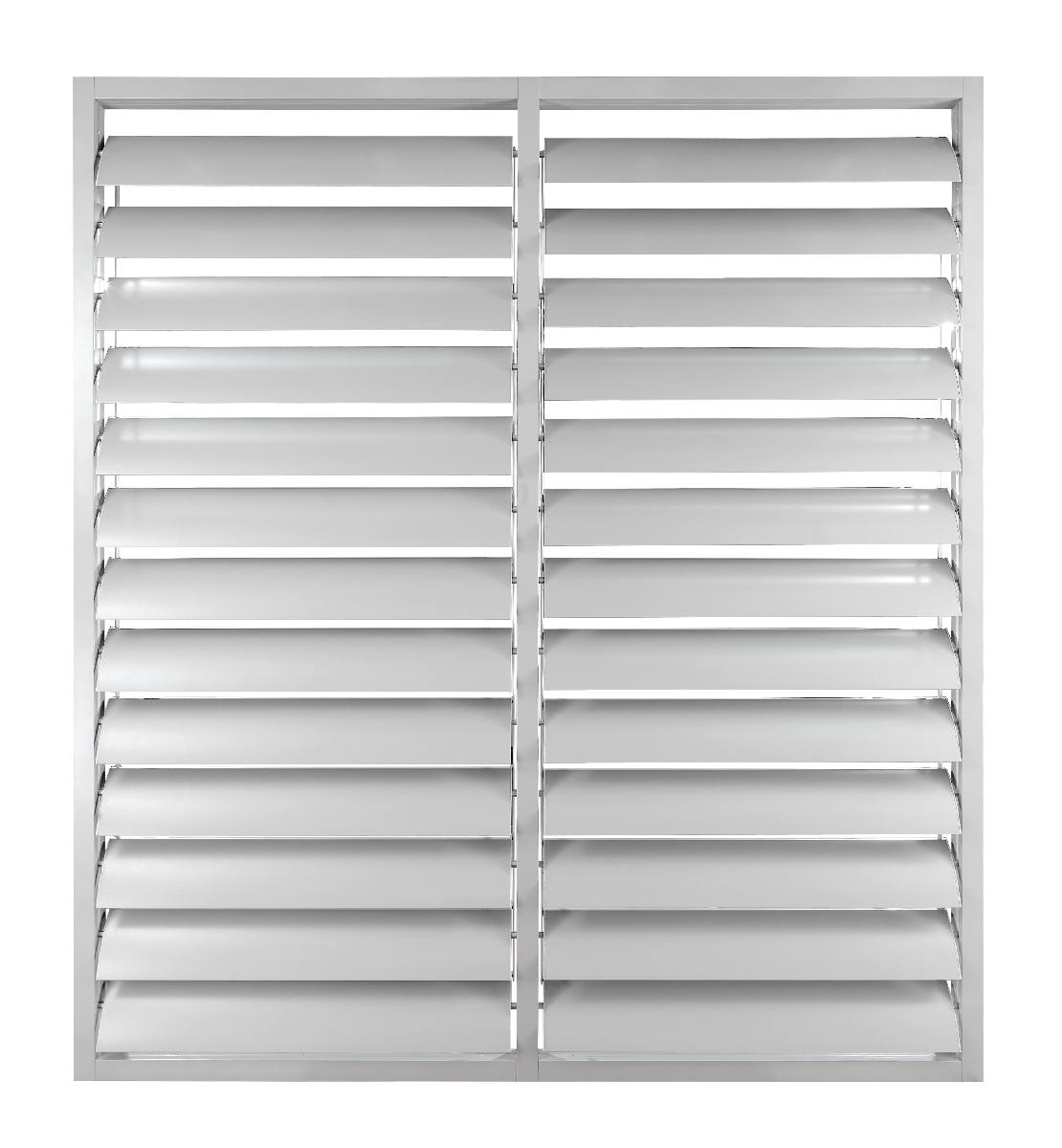

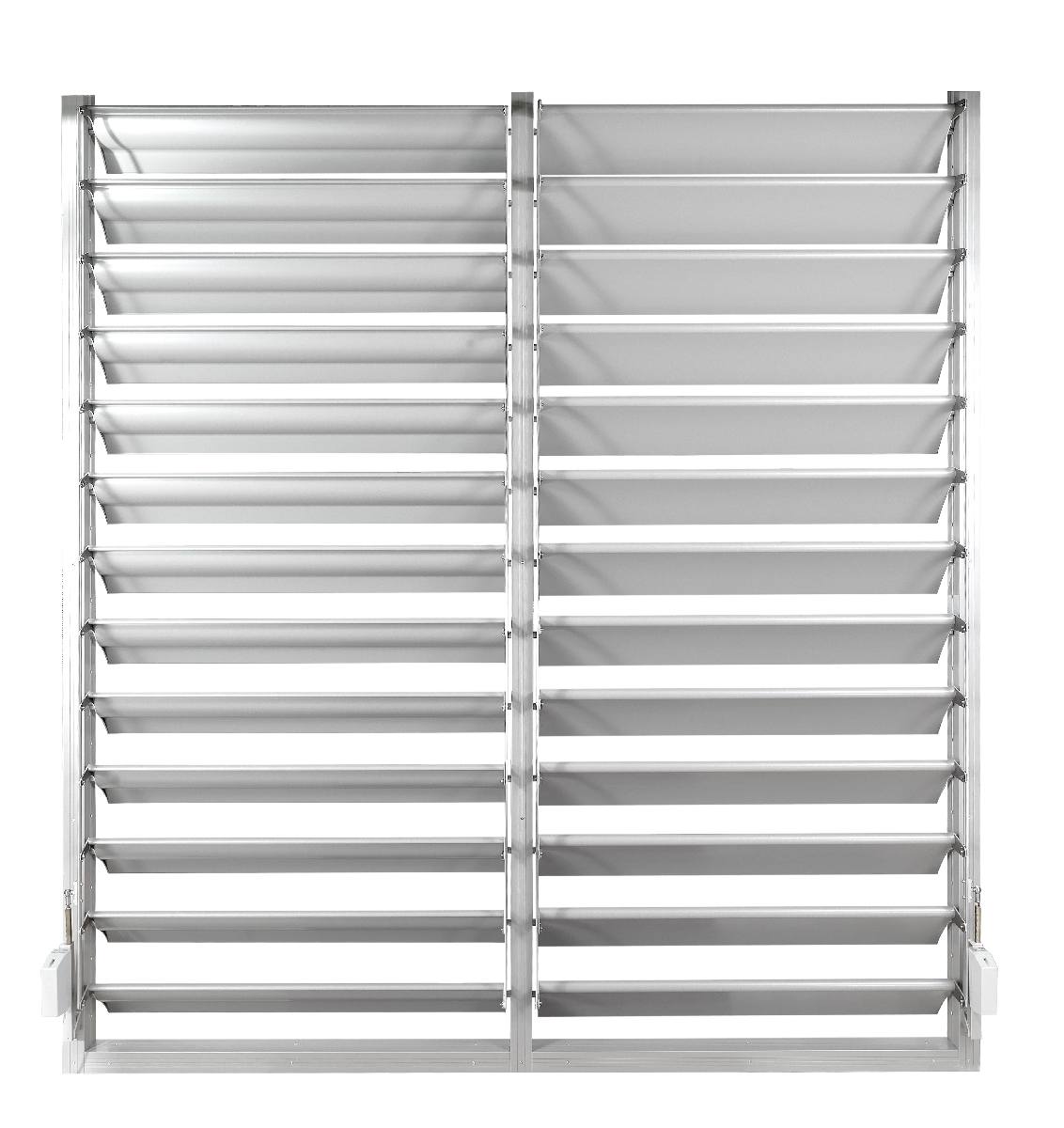

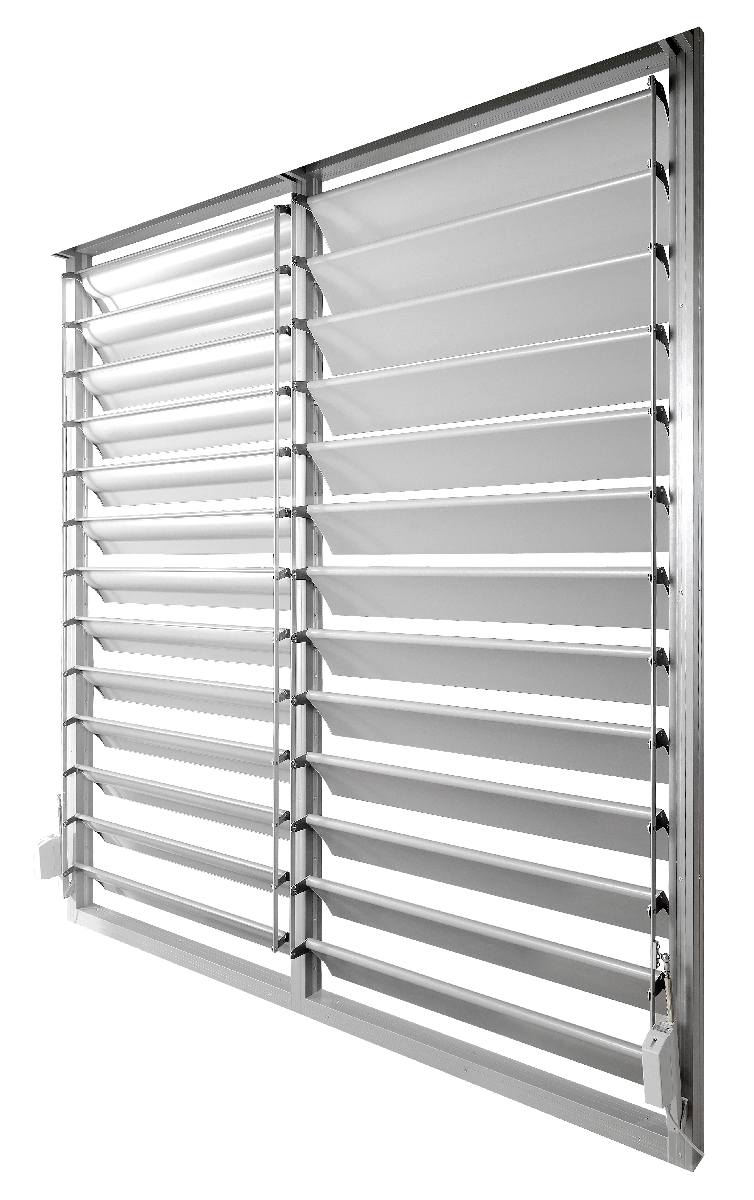

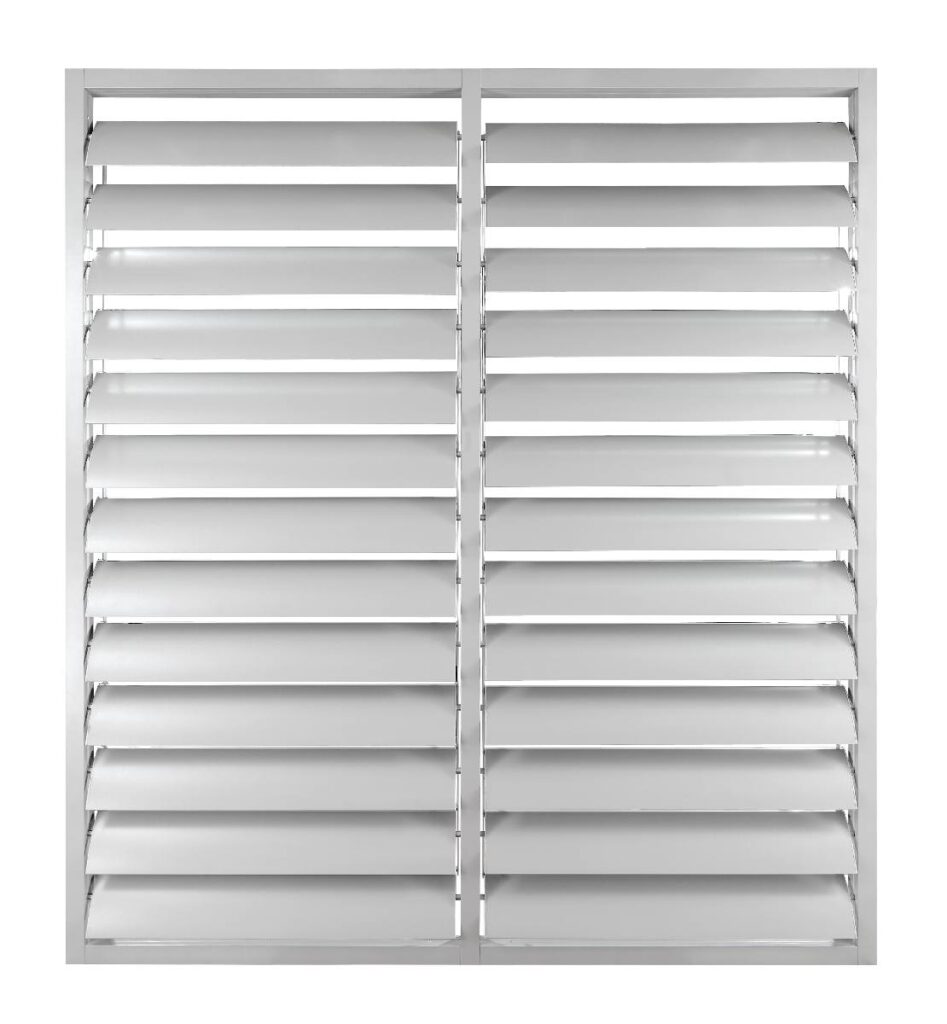

Louvres Shading System
the integrated energy saving proposal for sun protection
Aluminium Alloy
AIMgSi-0.5 F22
Hardness
12 Webster
Minimum coating thickness
75μm
Profile thickness
1,4 – 2,3mm
Tolerance according to
EN DIN 12020-02
Dimensions of the smallest column
60mm x 80mm
Dimensions of the largest column
60mm x 120mm
Width of fixed wing
100mm
Width of watertight wing
151mm
Width of fixed / movable wing
200mm
Maximum columns distance
3,0m
