ElementFaçade 7-SG

ElementFaçade 7-SG

Whether it be a skyscraper in a capital, an office building with an exceptional architectural look or a renovation of a residential high-rise: every urban development project searches for products that makes it stand out. At the same time, these projects aim to move fast and remain within the budget linked to standard products. In search of that ultimate combination, we dug deeper and came up with a remarkable result. With ElementFaçade 7, Reynaers Aluminium provides you with an off-the-shelf product answer. It is a tested and certified solution that meets a high level of architectural imagination. However, with Reynaers Aluminium’s expertise it can also be tailored exactly to your needs, whenever necessary.

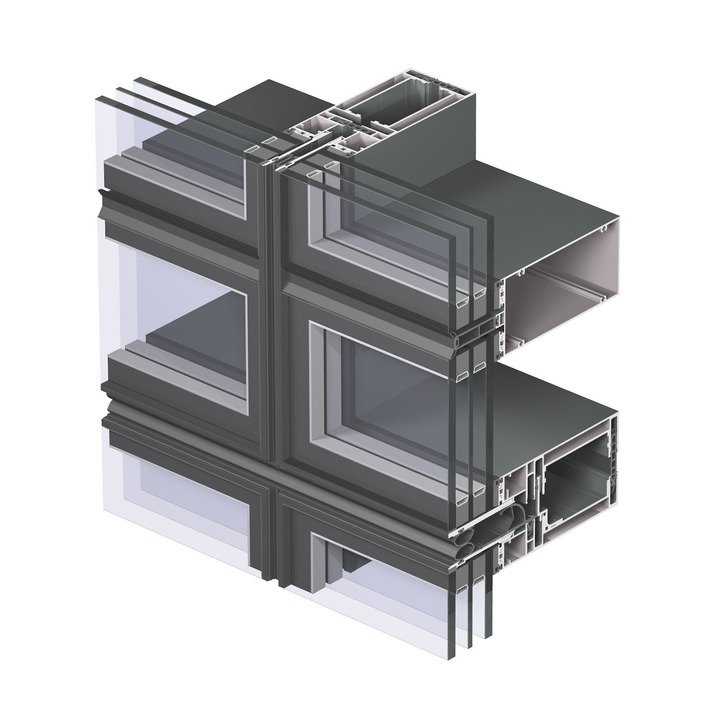

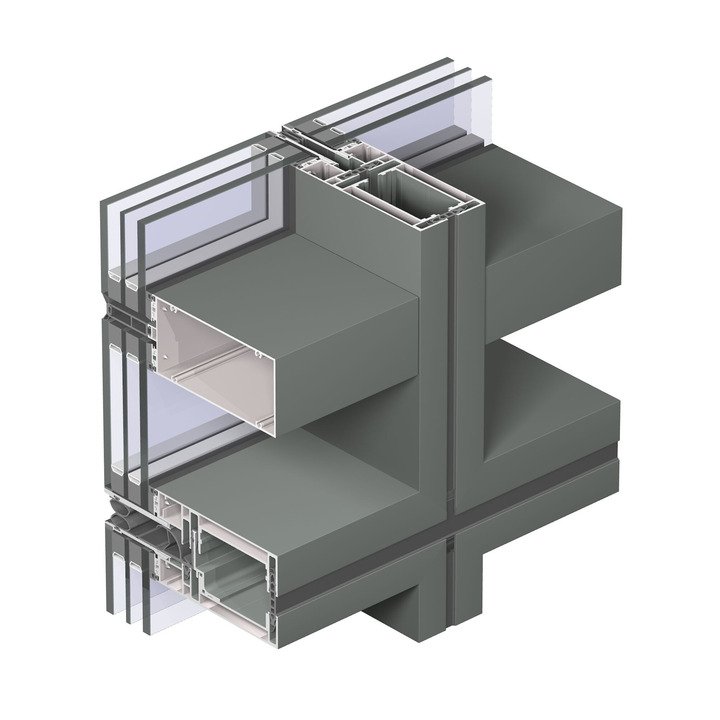

The structural glazed (SG) variant of the ElementFaçade 7 also has the familiar feature of mitre cuts, but combined with bonding of the glass. The SG creates a clean and flush glass surface, with minimal joint lines between them.

Technical information

Visible width interior 75 mm
Visible width exterior 11 mm
Max. Inertia mullions (lx: wind load) 453 cm⁴
Min. Inertia transoms (lx: wind load) 216 cm⁴
Max. height vent 3700 mm
Rebate height25 mm
Min. Glass thickness 36 mm
Max. Glass thickness 60 mm

Comfort
Air tightness max. test pressure 1200Pa
Water tightness E1200 (1200Pa)
Wind load resistance 2400 Pa
Acoustic performance Rw(C;Ctr) = 43(-2;-4) dB

Energy
Thermal insulation (Uf) 3.3 W/m²K
