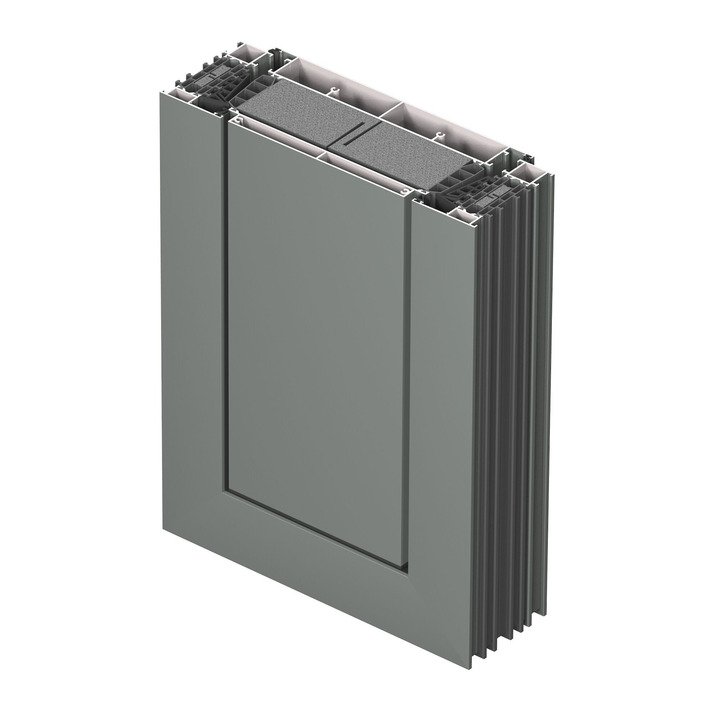

MasterLine 10 Ventilation Vent
The window system for low energy builds
MasterLine 10 offers a ventilation vents for optimal fresh air access. The vent is optimised for easy installation and aesthetics as the end pieces are adjustable for optimal fit and paintable to match the color of the profiles.
The MasterLine 10 ventilation vent is available on the best insulation level, meeting the strictest requirements for thermal insulation.
Technical information
Min. Visible width frame: inward opening 60 mm
Min. Visible width frame-vent: inward opening 304 mm
Min. Visible width T-profile 87 mm
Max. height vent 2800 mm
Max. width vent 250 mm
Overall system depth frame 97 mm
Overall system depth vent 107 mm
Rebate height 27 mm
Min. Visible width frame-vent: inward opening 304 mm
Min. Visible width T-profile 87 mm
Max. height vent 2800 mm
Max. width vent 250 mm
Overall system depth frame 97 mm
Overall system depth vent 107 mm
Rebate height 27 mm
Comfort
Air tightness max. test pressure 4 (600 Pa)
Water tightness E900 (900 Pa)
Wind load resistance C4 (1600 Pa)
Acoustic performance 46 (-1;-4) dB dB
Energy
Thermal insulation (Uf) 119mm: 0,90 W/m²K
