EF 7 Opening Elements

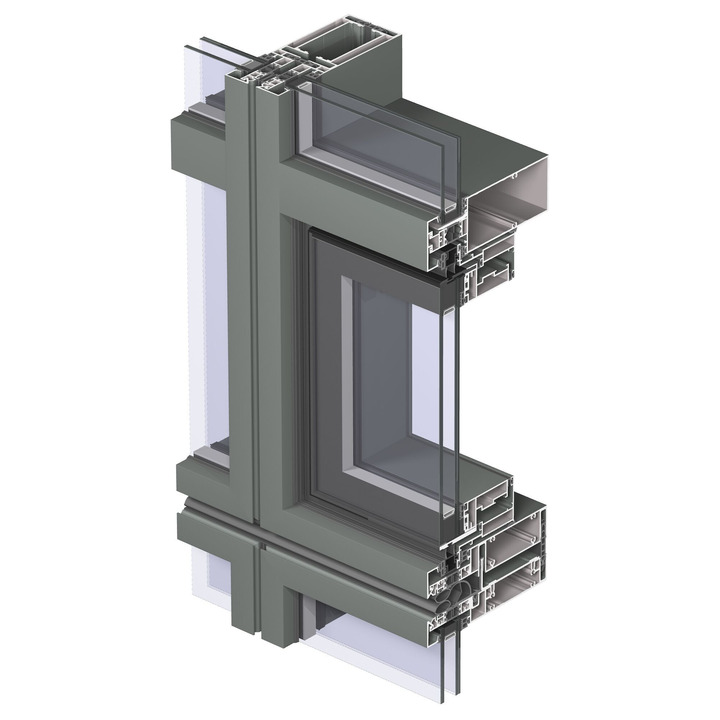

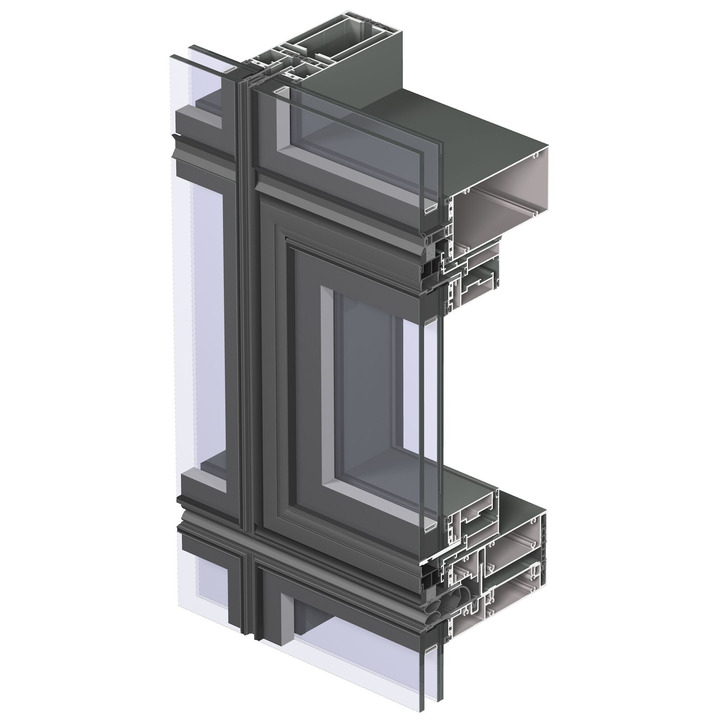

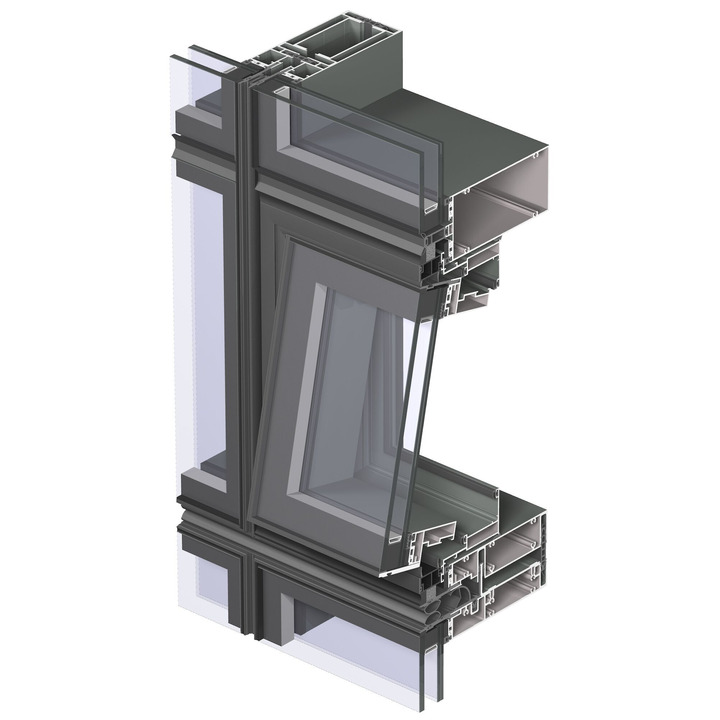

The outward opening elements for element façade have been completely redesigned. The elements are now better thermally insulated, capable of reaching the maximum dimensions in all variants, reach better performances overall, can be fitted with triple glass in both glazing bead and structural glazed variants, can be combined with the ElementFaçade 7 and feature an improved production ease and speed.
Technical information
Visible width interior 58 mm
Visible width exterior 11 mm
Max. height vent 2500 mm
Max. width vent 2000 mm
Max. weight vent (element) 180 kg
Min. Glass thickness 24 mm
Max. Glass thickness 62 mm
Comfort
Air tightness max. test pressure600
Water tightness E1500 (1500 Pa)
Wind load resistance 2000 Pa
Acoustic performance 41 (-2;-4) dB
Energy
Thermal insulation (Uf) Uf down to 1.5W/m²K (Functional) Utj down to 2.1W/m²K (SG) W/m²K
