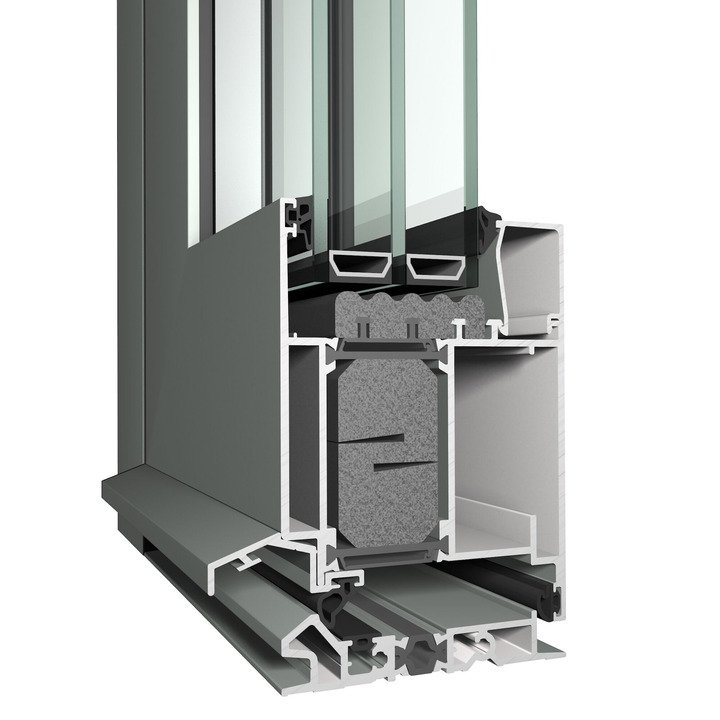

MasterLine 8-HI+
Flush Doors
Crafted for masters
MasterLine 8 doors offer a wide range of highly insulated and robust flush doors, which meets the modern requirements with regard to safety, thermal insulation and stability, allowing the creation of large entrance doors. MasterLine doors are available as inward and outward opening glass or panel doors and pivoting doors are possible. All the doors can be fitted with a wide range of locks and hinges.
With regard to safety and performance, the robust MasterLine doors can comply with burglar resistance class 3, large dimensions and weights up to 250kg and are proven to be extremely durable (class 8).
The SlimLine 38 doors are available in 2 different minimalistic design variants: Classic and Ferro to perfectly match the architectural aspect of the building. The windows and doors can be provided with double and triple glazing without losing the ultra-slim look.
In combination with its superior insulation capabilities, the system provides the perfect harmony between durable material, clean design and demanding architectural challenges.
Technical information
Min. Visible width frame-vent: inward opening 153 mm
Min. Visible width frame: outward opening 42.5 mm
Min. Visible width frame-vent: outward opening 153 mm
Min. Visible width T-profile 80 mm
Max. height vent 3000 mm
Max. width vent 1400 mm
Max. weight vent (element) 250 kg
Overall system depth frame 77 mm
Overall system depth vent 77 mm
Rebate height 27 mm
Min. Glass thickness 6 mm
Max. Glass thickness 57 mm
Glazing method Dry glazing with EPDM or neutral silicones
Thermal break Omega Shaped Fibreglass
Comfort
Air tightness max. test pressure 4 (600 Pa)
Water tightness 7A (300 Pa)
Wind load resistance C3 (1200 Pa)
Acoustic performance Rw (C; Ctr) = 43 (-1; -4) dB dB
Safety
Burglar resistance RC2/WK2
RC3/WK3
Energy
Thermal insulation (Uf)1,4 (178,5mm HI+: 1,3) W/m²K
