CW 50-FP
Concept Wall 50 ‘Fire Proof’
Optimal fire protection, maximum daylight admission and excellent thermal performance.

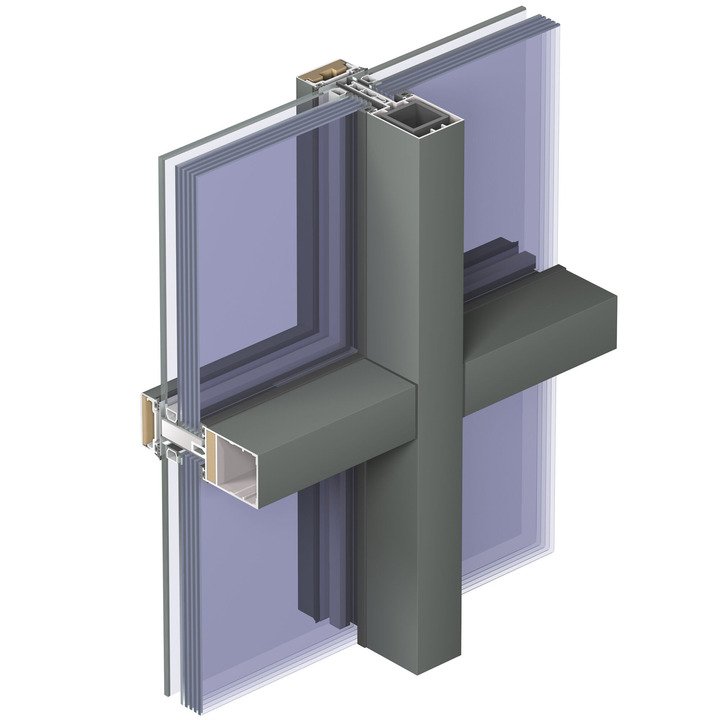

The ConceptWall 50-FP fire rated curtain wall is designed to provide an EW30, EI 30 or EI 60 fire resistance, whilst still offering the same advantages as the standard ConceptWall 50 façade system.
ConceptWall 50-FP contributes towards the tendency to use big and heavy glass panes and allows for the creation of transparent designs.
The 2021 update of this system allows it to carry triple glazing and offer a thermal performance up to par with the standard ConceptWall 50 system, creating a consistent performance across the whole facade.
Technical information
Visible width interior 50 mm
Visible width exterior 50 mm
Max. Inertia mullions (lx: wind load) 461 cm⁴
Rebate height 20 mm
Min. Glass thickness 34 mm
Max. Glass thickness 78 mm
Glazing method Fixing by pressure plates
Visible width exterior 50 mm
Max. Inertia mullions (lx: wind load) 461 cm⁴
Rebate height 20 mm
Min. Glass thickness 34 mm
Max. Glass thickness 78 mm
Glazing method Fixing by pressure plates
Comfort
Air tightness max. test pressure 1200
Water tightness 1200
Energy
Thermal insulation (Uf) 0,8 W/m²K
