BS 30

Protection against solar heat

Shape louvres
z-shaped

Size louvres
90 mm wide x 60 mm high

(Fixed) angle
yes

Walkway application
yes

Max. dimensions
3000 x 1000 mm

Possible automated
no

BS 30

Creating shade

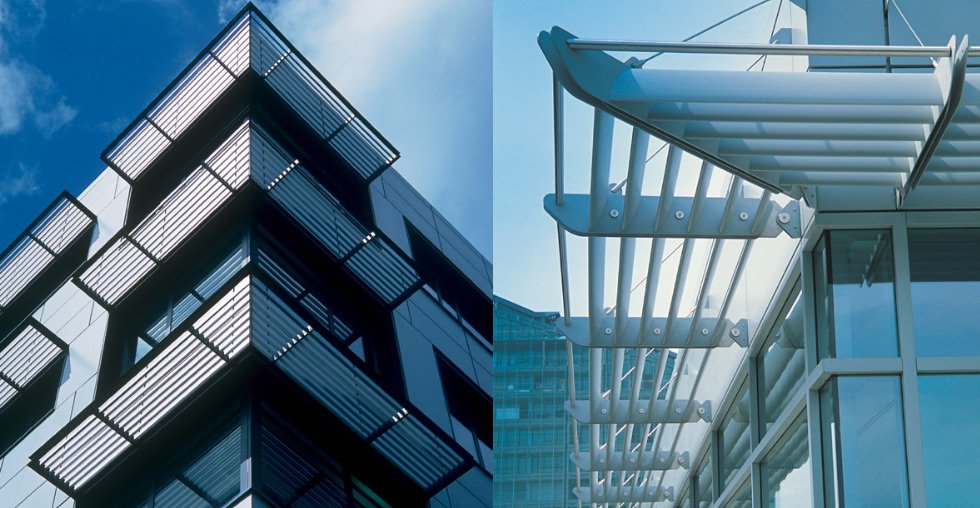

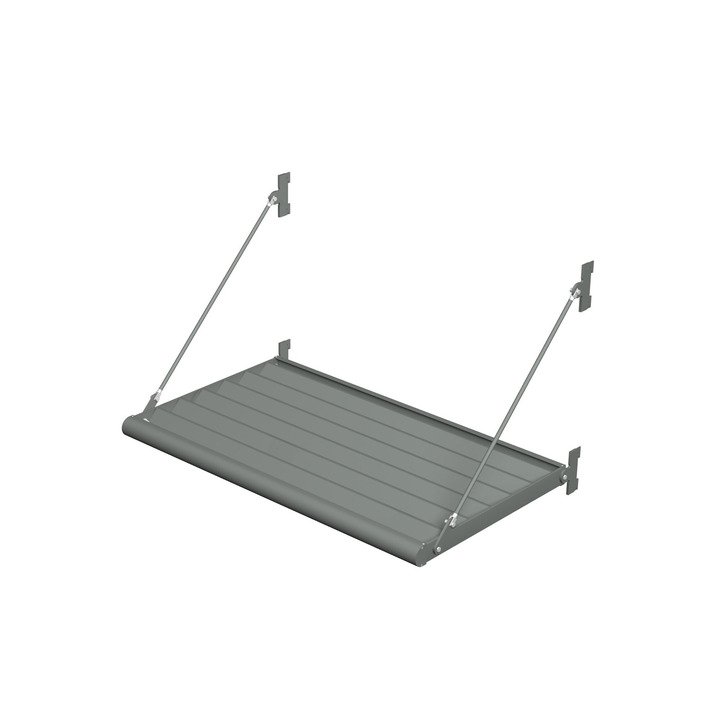

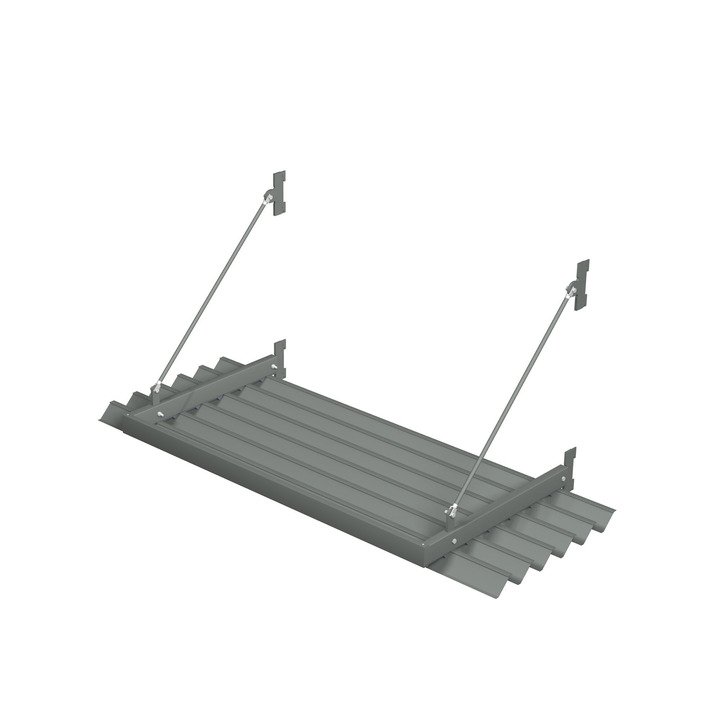

Brise Soleil 30 is a frame system providing sun shading in a horizontal plane by using Z-shaped slats. This sun screening system can be pre-assembled in the workshop, allowing easy on-site installation.

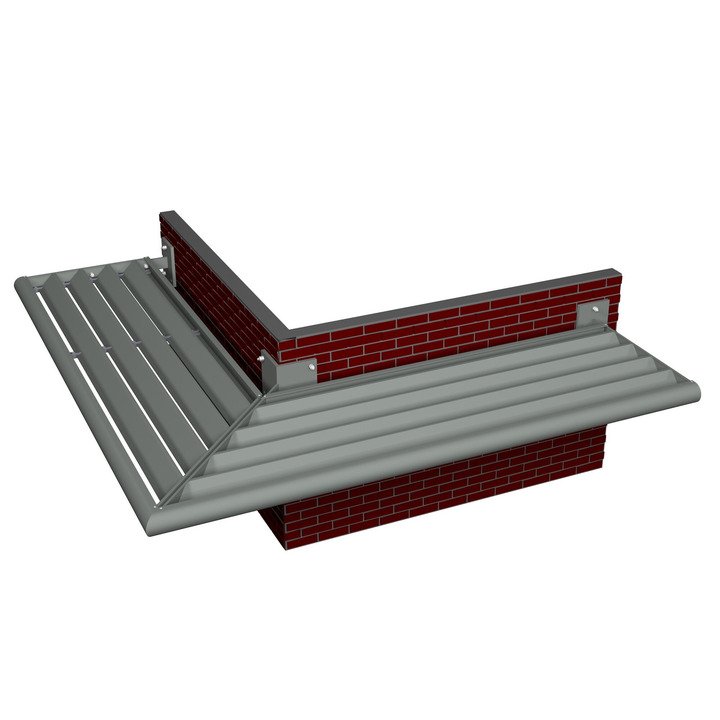

The structure of the horizontal frame system can be used as a walkway for the overall maintenance of the building. This brings an added value to the sun screening system. The frames have standard anchorage solutions for curtain walls, brick, concrete and steel structures.
