CP 130 (-LS)
Concept Patio 130 (-Lift Slide)
Aesthetic functionality

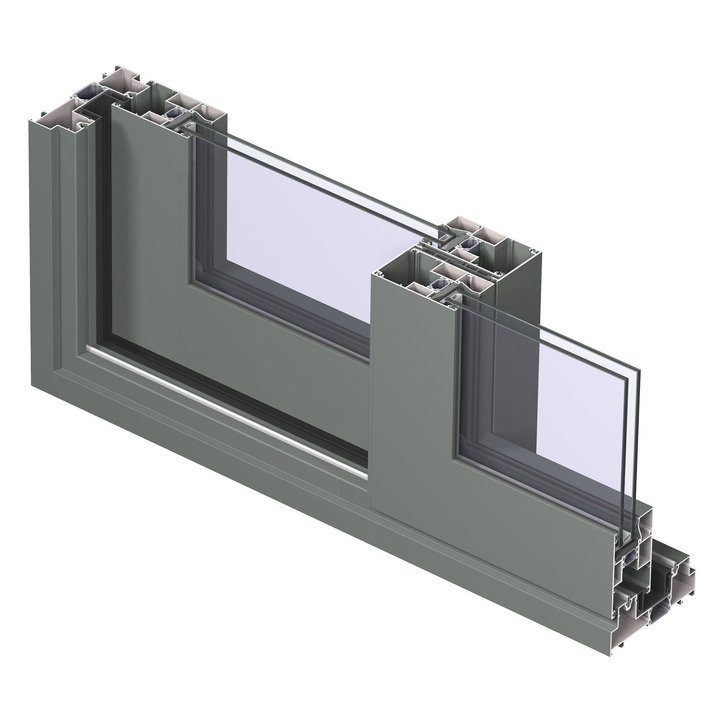

Concept Patio® 130 is a highly insulated slide and lift-slide system, which meets the highest requirements with regard to insulation, stability and safety. The system perfectly links up to the CS 77 and MasterLine 8 series.

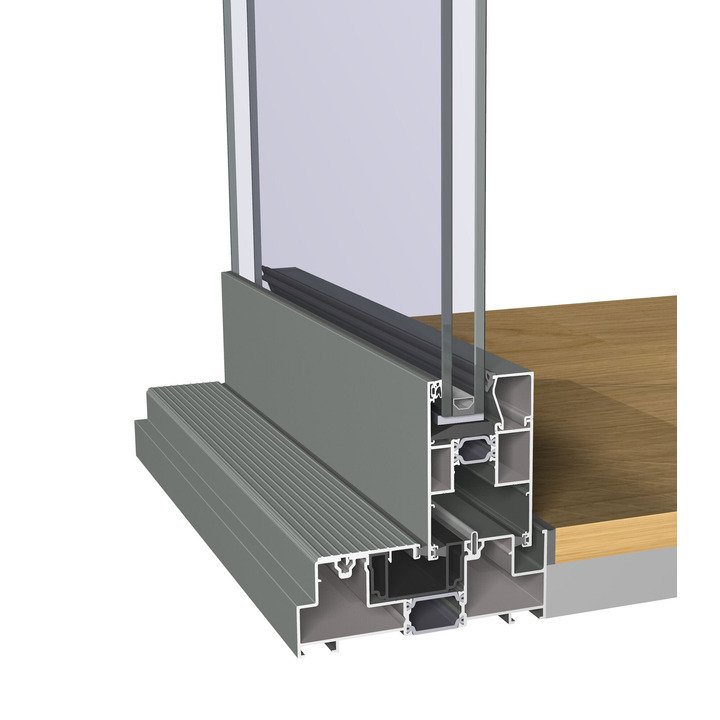

CP 130 is available with various opening possibilities and the low threshold option offers a solution to improve the buildings accessibility. A special corner solution makes it possible to open up spaces without any fixed corner element, creating a perfect and clear continuity between the indoor and outdoor spaces. This makes CP 130 ideal for rooms with a view.

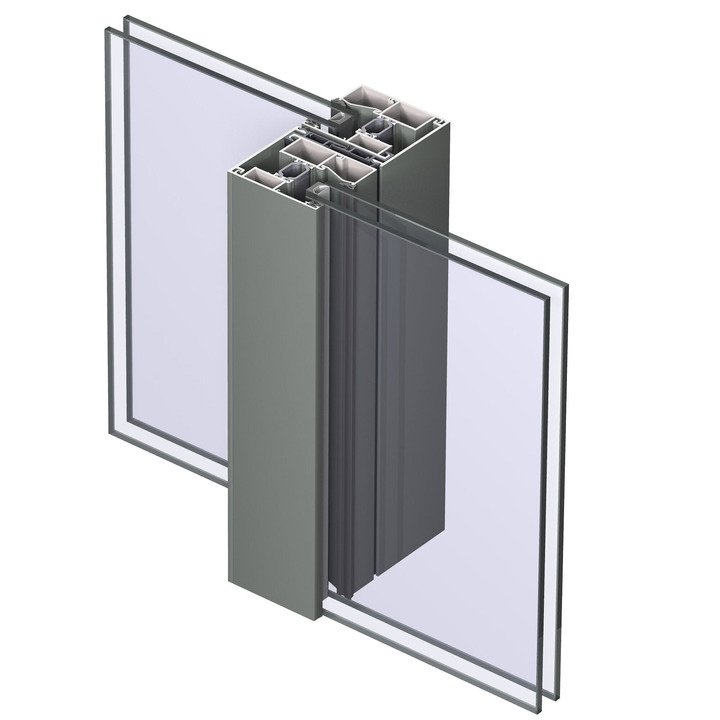

This robust system allows the construction of large and stable sliding windows and doors with a vent weight up to 300 kg. It also offers an aesthetical slimline middle section. Additionally, CP 130 can comply with burglar resistance class 2, offering a safe and secure solution.
Technical information
Min. Visible width T-profile 76 mm
Visible width meeting section 50 mm
Max. height vent 2700 mm
Max. width vent 2700 mm
Max. weight vent (element) 300 kg
Overall system depth frame 130 mm
Overall system depth vent 59 mm
Rebate height 25 mm
Visible height vent 94 mm
Visible height meeting section 4 doors 194 mm
Min. Glass thickness 4 mm
Max. Glass thickness 43 mm
Glazing method Dry glazing with EPDM or neutral silicones
Thermal break Fibreglass Reinforced Polyamide Strips
Comfort
Air tightness max. test pressure 4 (600 Pa)
Water tightness E750 (750 Pa)
Wind load resistance B5 (2000 Pa)
Acoustic performance Rw (C; Ctr) = 39 (-1;-3) dB
Safety
Burglar resistance RC2/WK2
Energy
Thermal insulation (Uf) 2.35 W/m²K
