MasterLine 8 Swift

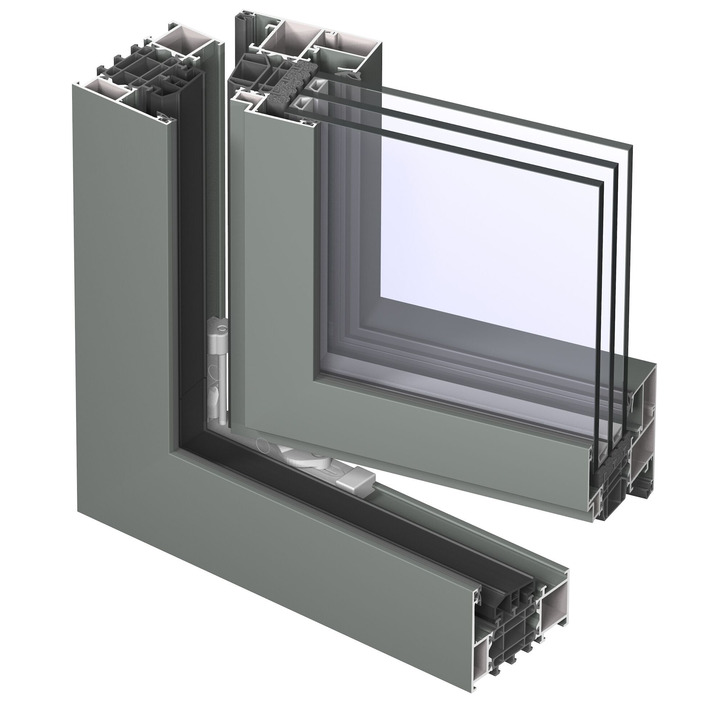

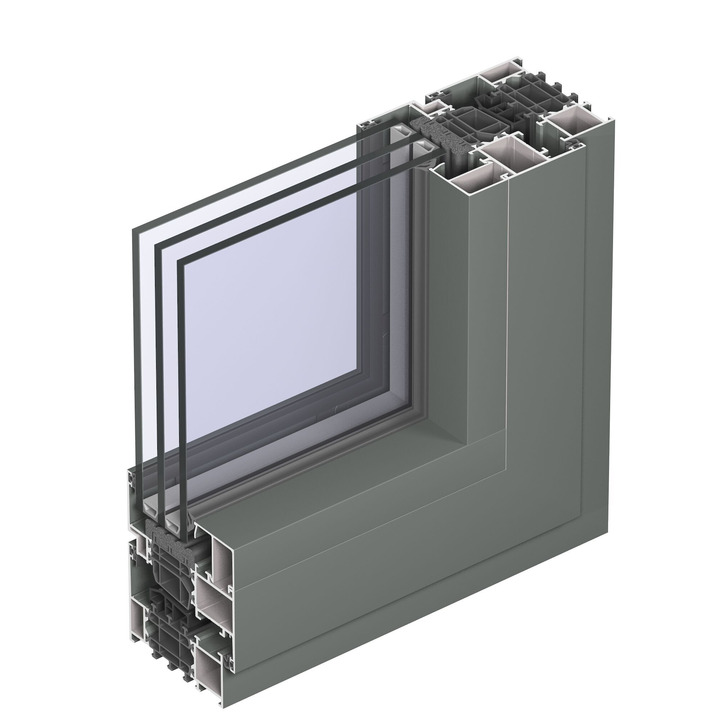

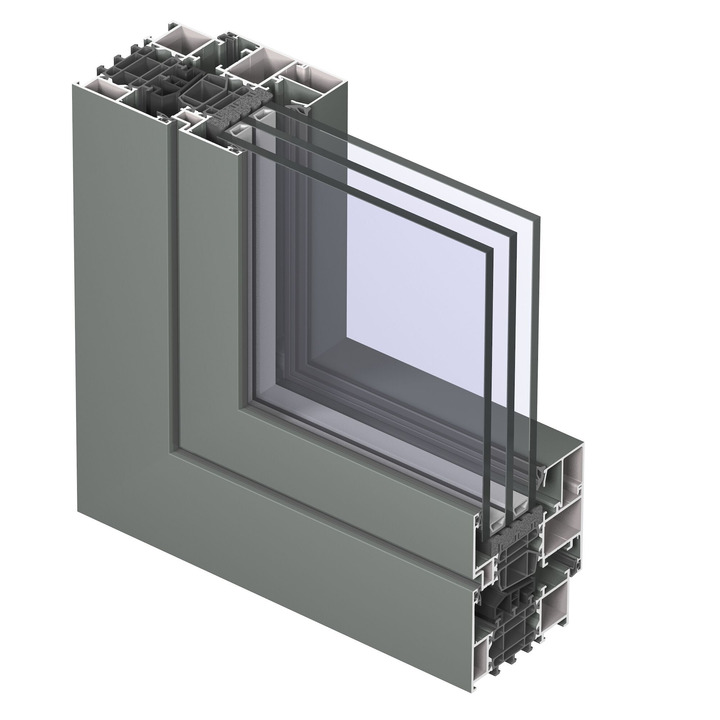

MasterLine 8 ‘Swift’ window
The summit in efficiency
MasterLine 8 Swift technology brings optimal production efficiency to the fabricator. The combination of the trusted MasterLine high performance basis with a significant reduction in production time of windows, makes MasterLine 8 Swift a highly competitive product.
MasterLine Swift windows are available in the standard ‘functional’ design variant, in most opening types and on 3 insulation levels: standard, HI en HI+.

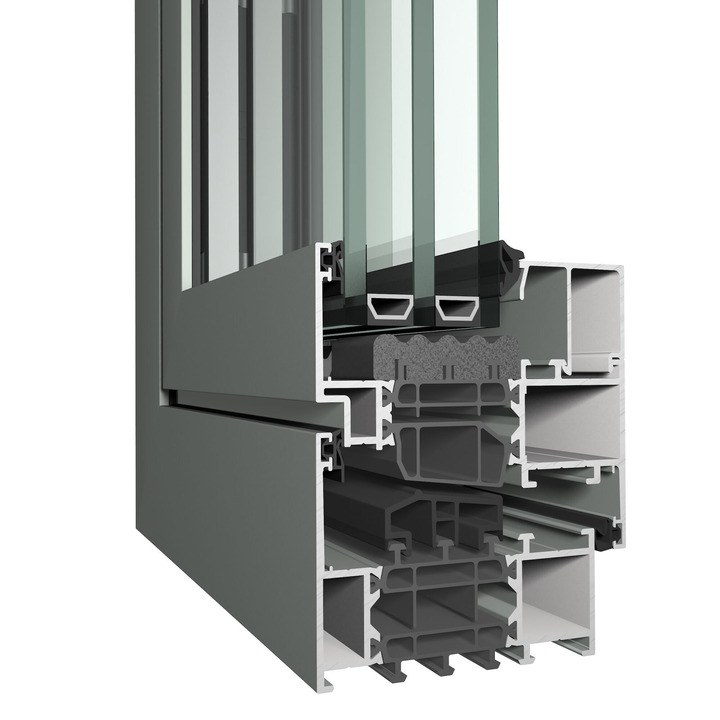

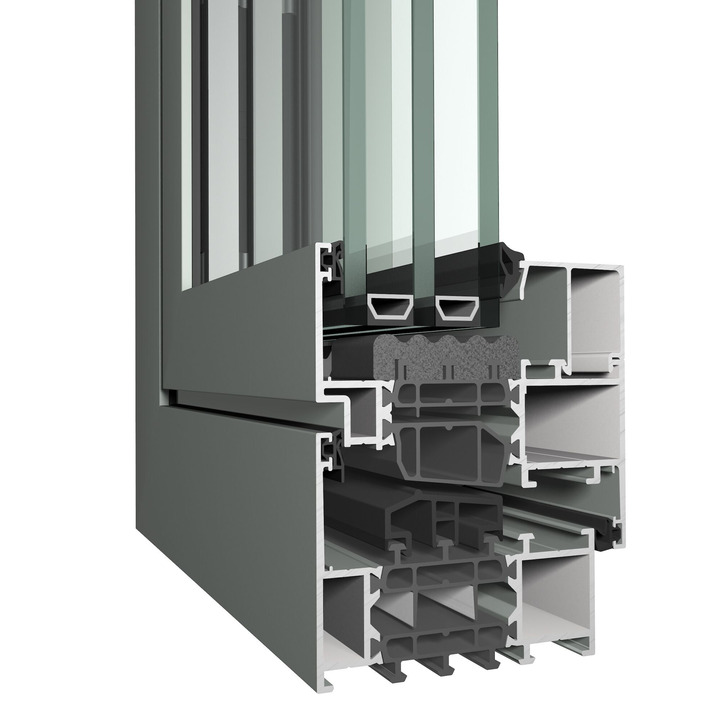

Reynaers introduces dedicated Swift profiles: profiles with gasket pre-assembled onto the profiles that have been tested on Reynaers supplied sawing and CNC machines. Swift profiles are available in 3 vent profiles (+outward opening vent), a double casement profile, 4 frames and 3 transoms.
Technical information
Min. Visible width frame-vent: inward opening 97 mm
Min. Visible width frame: outward opening 20 mm
Min. Visible width frame-vent: outward opening 138 mm
Min. Visible width T-profile 80 mm
Max. height vent 2800 mm
Max. width vent 1200 mm
Max. weight vent (element) 200 kg
Overall system depth frame 77 mm
Overall system depth vent 87 mm
Rebate height 27 mm
Min. Glass thickness 4 mm
Max. Glass thickness 62 mm
Min. Glass thickness vent 13 mm
Max. Glass thickness vent 72 mm
Comfort
Air tightness max. test pressure 4 (600 Pa)
Water tightness E900 (900 Pa)
Wind load resistance C4 (1600 Pa)
Energy
Thermal insulation (Uf) St. 1,9 / HI 1,6 / HI+1,3 W/m²K
