MasterLine 8 Renaissance

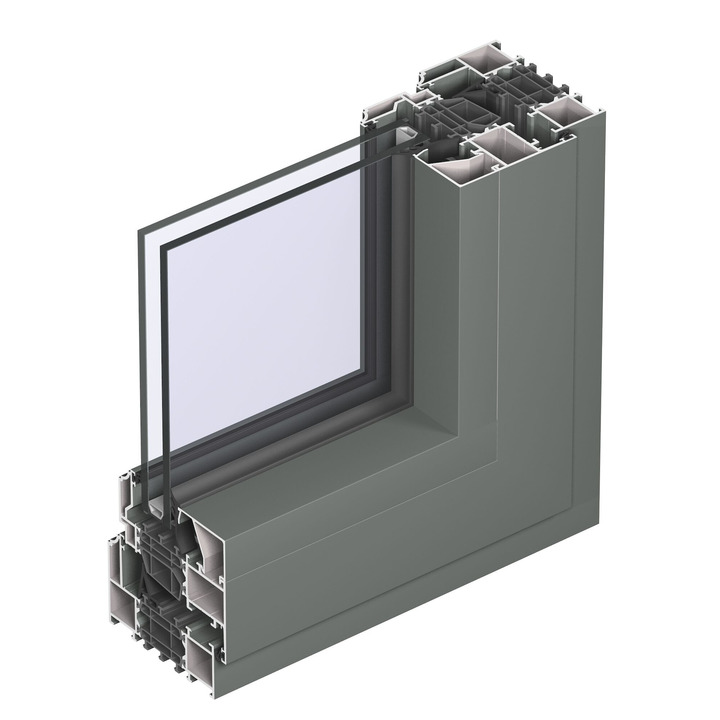

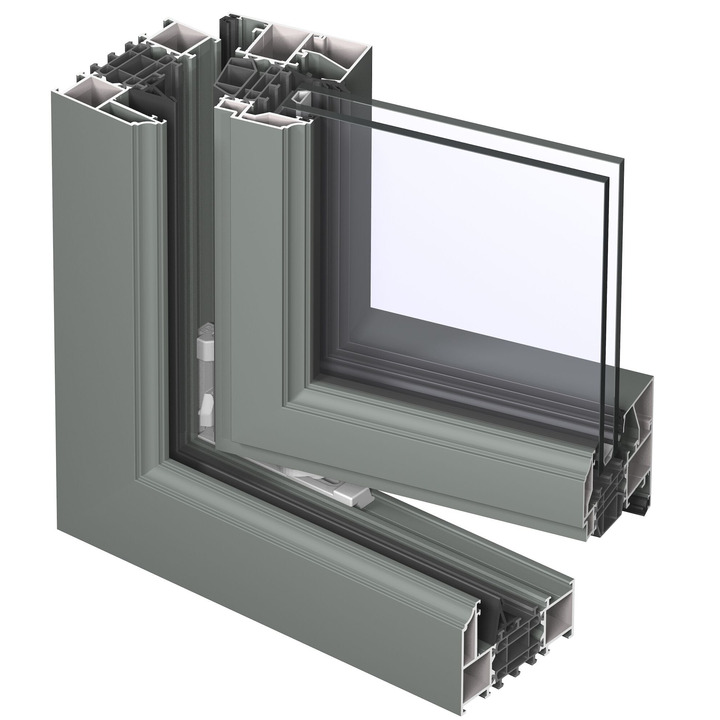

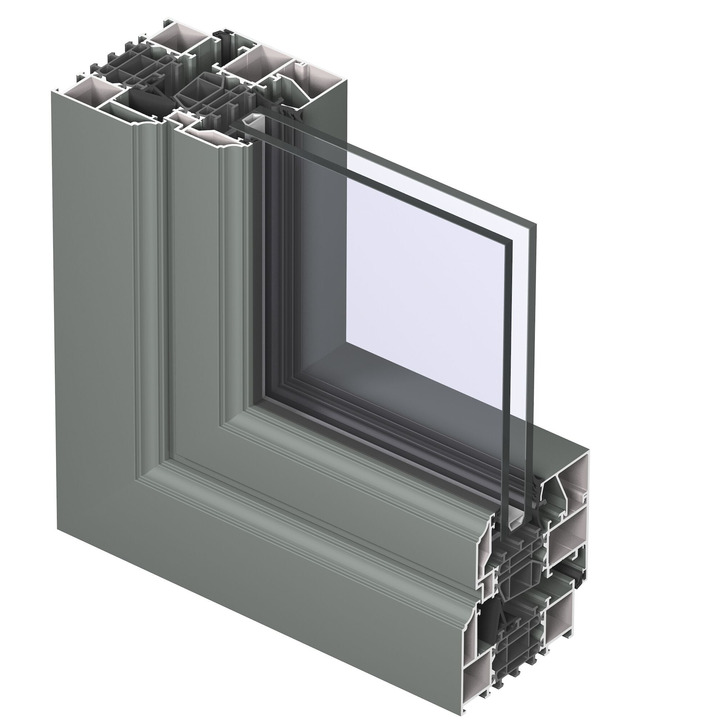

MasterLine 8 ‘Renaissance’ window
The traditional design

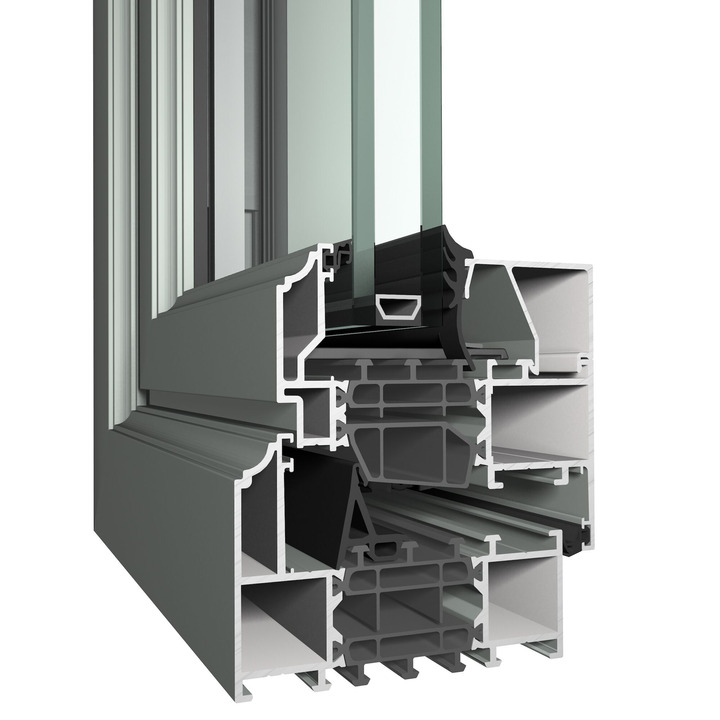

The MasterLine 8 Renaissance windows have been redesigned, more true to the traditional ogee detailing in heritage windows. The sash is recessed to the frame on the exterior side and the detailing is more refined.
Renaissance windows are available in most opening types and in the three insulation levels: standard, HI and HI+ with similar insulation properties as the Functional design range.
Technical information
Min. Visible width frame: inward opening 53 mm
Min. Visible width frame-vent: inward opening 97 mm
Min. Visible width frame: outward opening 20 mm
Min. Visible width frame-vent: outward opening 138 mm
Min. Visible width T-profile 80 mm
Max. height vent 2800 mm
Max. width vent 1200 mm
Max. weight vent (element) 200 kg
Overall system depth frame 77 mm
Overall system depth vent 87 mm
Rebate height 27 mm
Min. Glass thickness 4 mm
Max. Glass thickness 58 mm
Min. Glass thickness vent 4 mm
Max. Glass thickness vent 58 mm
Min. Visible width frame-vent: inward opening 97 mm
Min. Visible width frame: outward opening 20 mm
Min. Visible width frame-vent: outward opening 138 mm
Min. Visible width T-profile 80 mm
Max. height vent 2800 mm
Max. width vent 1200 mm
Max. weight vent (element) 200 kg
Overall system depth frame 77 mm
Overall system depth vent 87 mm
Rebate height 27 mm
Min. Glass thickness 4 mm
Max. Glass thickness 58 mm
Min. Glass thickness vent 4 mm
Max. Glass thickness vent 58 mm
Comfort
Air tightness max. test pressure 4 (600 Pa)
Water tightness E900 (900 Pa)
Wind load resistance C5 (2000 Pa)
Acoustic performance 46 (0;-3) for TuTi, 44 (-2;-4) for DC dB
Safety
Burglar resistance RC2/WK2
RC3/WK3
Energy
Thermal insulation (Uf) 119mm: St. 1,9 / HI 1,6 / HI+1,2 W/m²K
