MasterLine 8 HI+

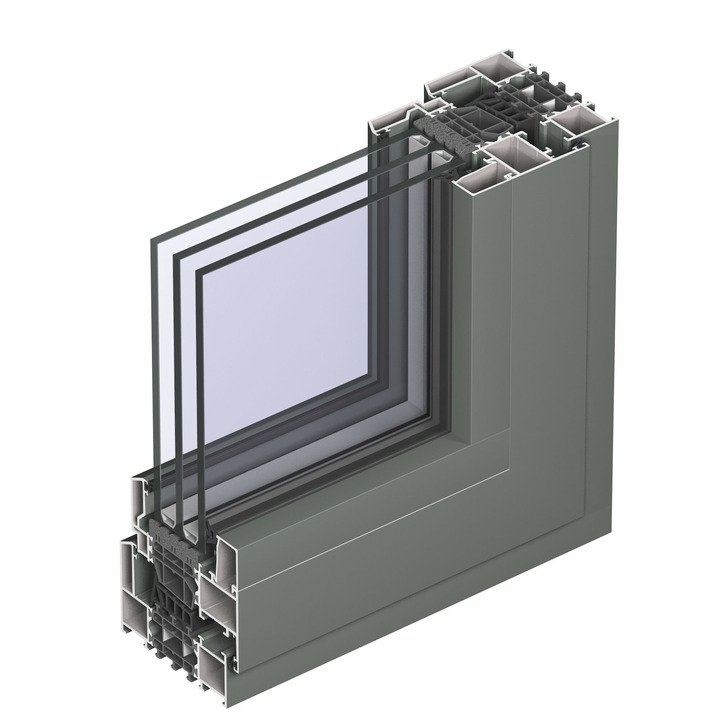

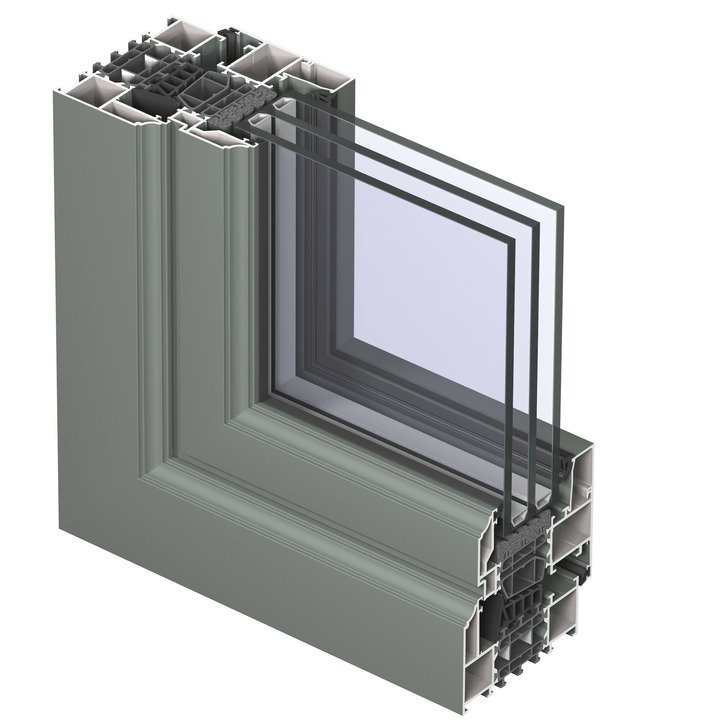

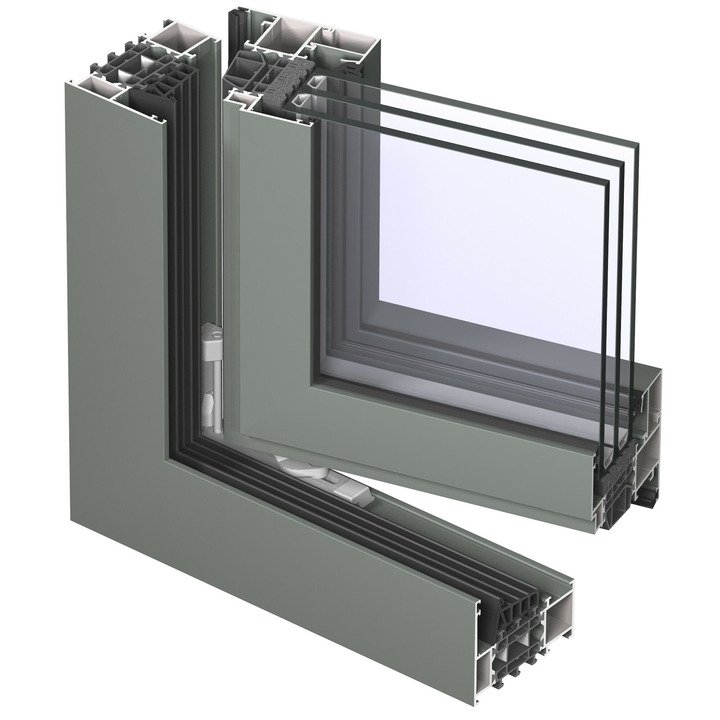

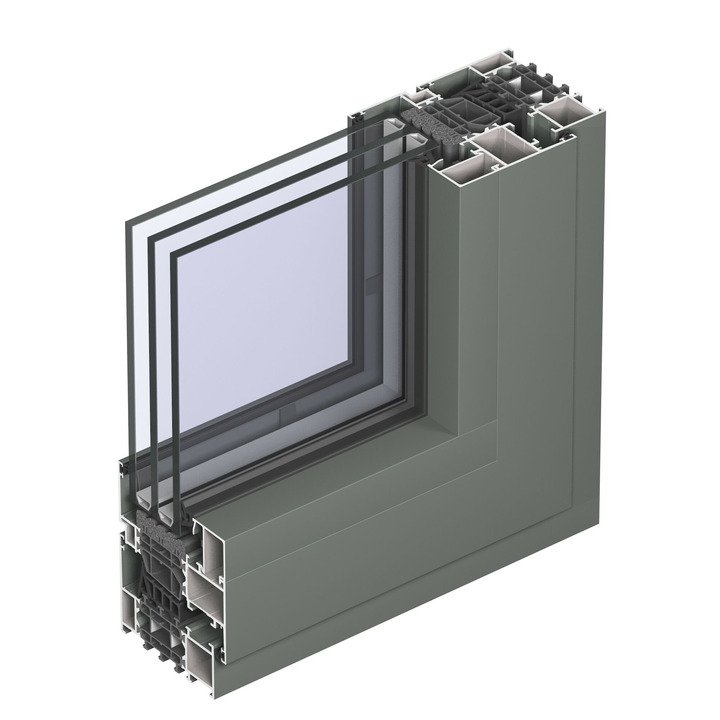

MasterLine 8 ‘High Insulating Plus’ window
Ultimate performances
The MasterLine 8 platform with its 40mm thermal break ensures an Uf value as low as of 1,2 W/m²K for a frame-vent section of 119mm on the ‘High Insulating+’ insulation level with triple glazing. The ThermoPlastic Elastomer (TPE) central gasket in combination with low emission foils on the insulation bars offer a window solution for passive housing on a frame depth of 77mm.
The HI+ variant is composed of profiles with noryl insulation bars, PEX insulation foams, EPDM glazing gaskets and a TPE central gasket.
Technical information
Min. Visible width frame-vent: inward opening 97 mm
Min. Visible width frame: outward opening 20 mm
Min. Visible width frame-vent: outward opening 138 mm
Min. Visible width T-profile 80 mm
Max. height vent 2800 mm
Max. width vent 1200 mm
Max. weight vent (element) 200 kg
Overall system depth frame 77 mm
Overall system depth vent 87 mm
Rebate height 27 mm
Min. Glass thickness 4 mm
Max. Glass thickness 58 mm
Min. Glass thickness vent 13 mm
Max. Glass thickness vent 68 mm
Comfort
Air tightness max. test pressure 4 (600 Pa)
Water tightness E900 (900 Pa)
Wind load resistance C5 (2000 Pa)
Acoustic performance 46 (0;-3) for TuTi, 44 (-2;-4) for DC dB
Safety
Burglar resistance RC2/WK2
RC3/WK3
Energy
Thermal insulation (Uf) 119mm: 1,2 W/m²K
