MasterLine 8 Deco
MasterLine 8 ‘Deco’ window
The distinctive design

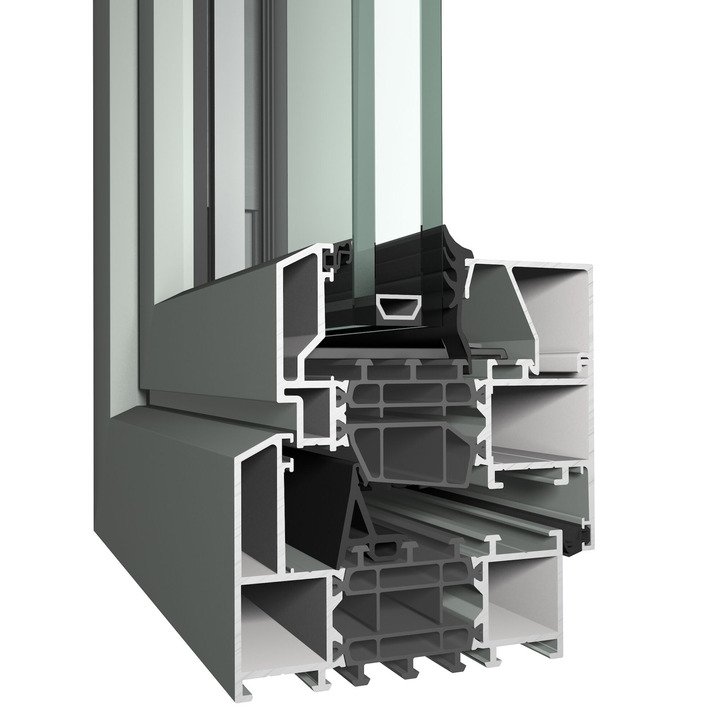

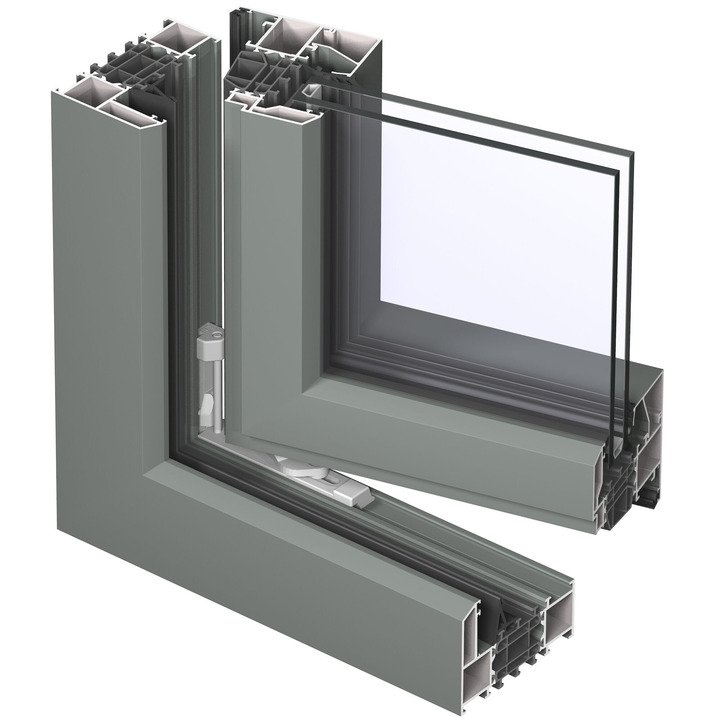

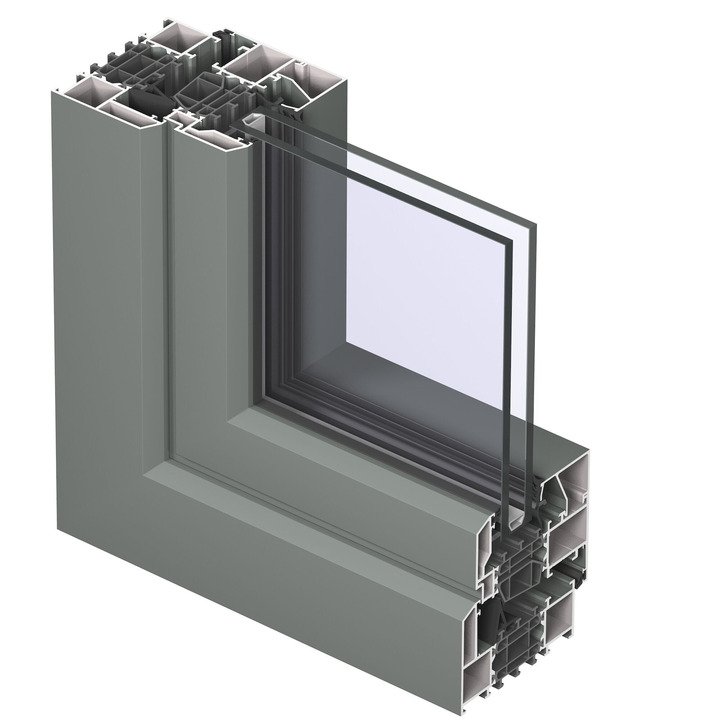

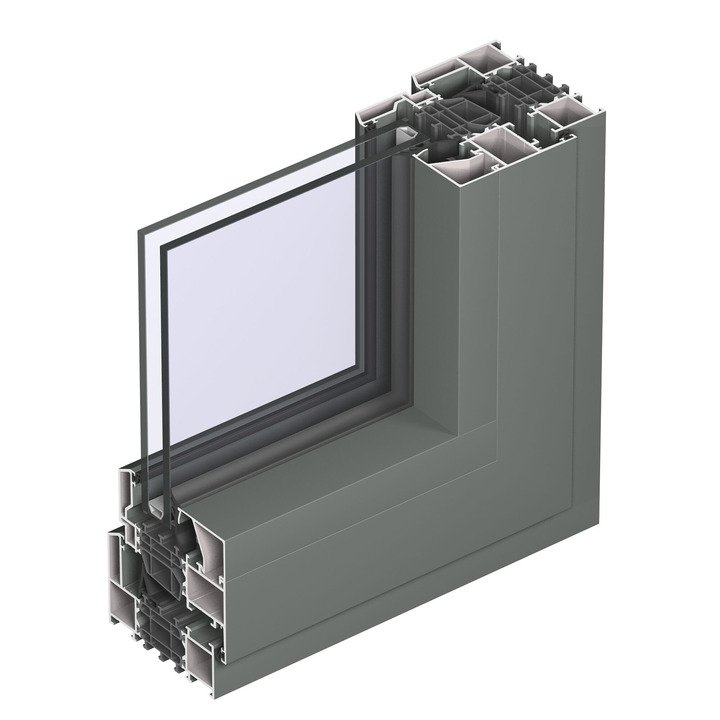

MasterLine 8 Deco windows offer a modern, unique design to be a little different yet have a same modern feel. The sash is recessed to the frame on the exterior side and the sloped detailing brings a fine palette of reflections and shading.

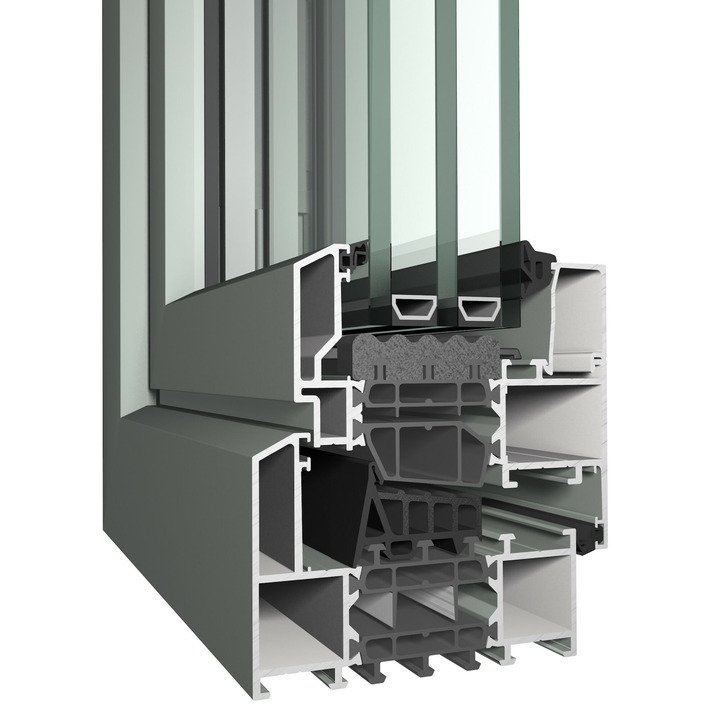

Deco windows are available in most opening types and in the three insulation levels: standard, HI and HI+ with similar insulation properties as the Functional design range.
MasterLine 8 Deco windows combine:
- water tightness of 1200Pa,
- air tightness of 600Pa with air loss reduction of 80% below class 4 maximum, with
- excellent thermal values and
- glass weights up to 200kg for a turn-tilt window.
Technical information
Min. Visible width frame: inward opening 53 mm
Min. Visible width frame-vent: inward opening 97 mm
Min. Visible width frame: outward opening 20 mm
Min. Visible width frame-vent: outward opening 138 mm
Min. Visible width T-profile 80 mm
Max. height vent 2800 mm
Max. width vent 1200 mm
Overall system depth frame 77 mm
Overall system depth vent 87 mm
Rebate height 27 mm
Min. Glass thickness 4 mm
Max. Glass thickness 58 mm
Min. Glass thickness vent 4 mm
Max. Glass thickness vent 58 mm
Min. Visible width frame-vent: inward opening 97 mm
Min. Visible width frame: outward opening 20 mm
Min. Visible width frame-vent: outward opening 138 mm
Min. Visible width T-profile 80 mm
Max. height vent 2800 mm
Max. width vent 1200 mm
Overall system depth frame 77 mm
Overall system depth vent 87 mm
Rebate height 27 mm
Min. Glass thickness 4 mm
Max. Glass thickness 58 mm
Min. Glass thickness vent 4 mm
Max. Glass thickness vent 58 mm
Comfort
Air tightness max. test pressure 4 (600 Pa)
Water tightness E900 (900 Pa)
Wind load resistance C5 (2000 Pa)
Acoustic performance 46 (0;-3) for TuTi, 44 (-2;-4) for DC dB
Safety
Burglar resistance RC2/WK2
RC3/WK3
