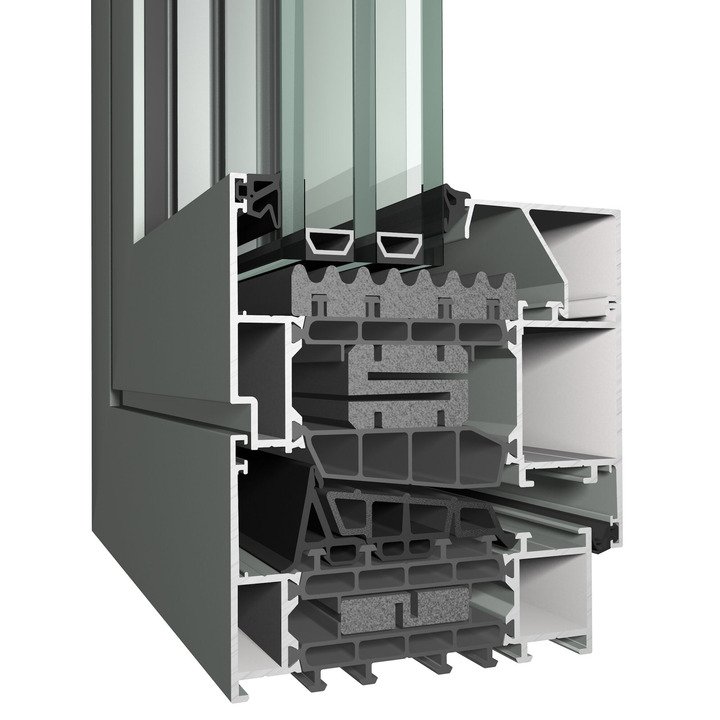

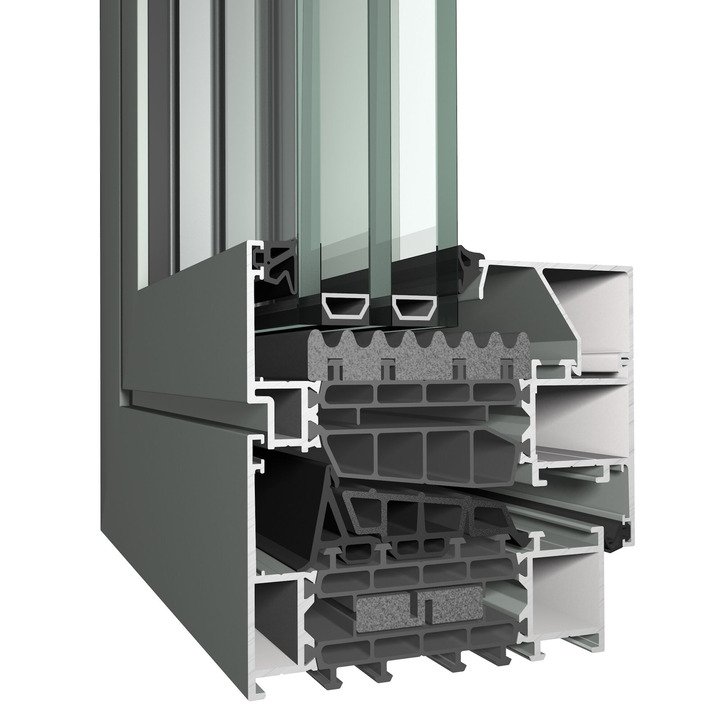

MasterLine 10 HI+
MasterLine 10 ‘High Insulating Plus’ window
The window system for low energy builds
MasterLine 10 windows are designed for the building trends of today and tomorrow: low energy building, maximum daylight access, superb performances and safe homes (up to burglar resistance class 3).

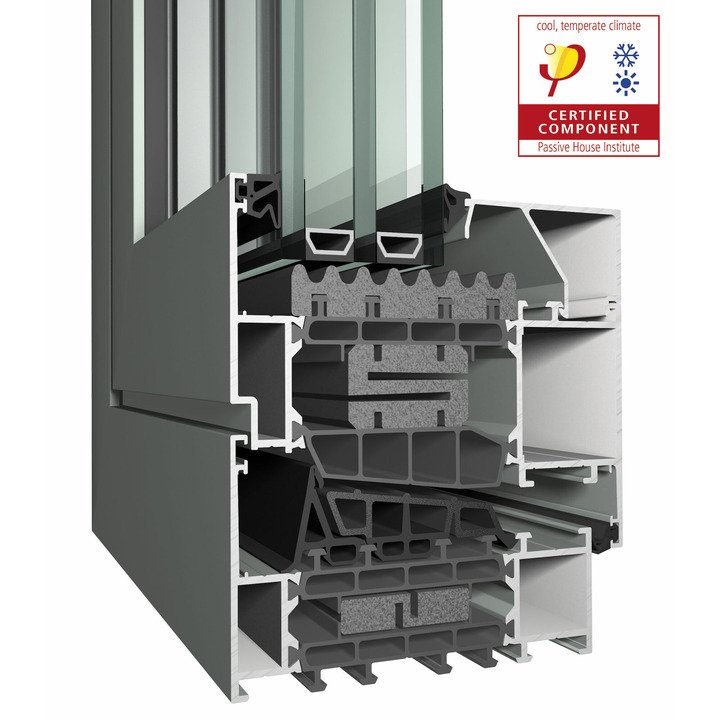

The product offering of MasterLine 10 windows is truly unique in its applicability: a full range of transoms and frames, connection profiles with Sliding and Curtain Wall system, but also the design freedom that is offered with the Renaissance and Deco profile range. The windows are offered with a Passive Housing certificate!
MasterLine 10 uses many of the same articles as in MasterLine 8 windows: corner cleats, glazing gaskets and also the same central gasket ensuring the same performances, production efficiency and robustness
All above makes MasterLine 10 the ideal solution for domestic as well as public projects.
Technical information
Min. Visible width frame-vent: inward opening 104 mm
Min. Visible width frame: outward opening 27 mm
Min. Visible width frame-vent: outward opening 140 mm
Min. Visible width T-profile 87 mm
Max. height vent 2800 mm
Max. width vent 1200 mm
Max. weight vent (element) 200 kg
Overall system depth frame 97 mm
Overall system depth vent 107 mm
Rebate height 27 mm
Min. Glass thickness 20 mm
Max. Glass thickness 78 mm
Min. Glass thickness vent 30 mm
Max. Glass thickness vent 88 mm
Comfort
Air tightness max. test pressure 4 (600 Pa)
Water tightness E900 (900 Pa)
Wind load resistance C5 (2000 Pa)
Acoustic performance 46 (-1;-4) for TuTi, 44 (-2;-4) for DC dB
Safety
Burglar resistance RC2/WK2
RC3/WK3
Energy
Thermal insulation (Uf) 119mm: 0,90 W/m²K
