CS 77 Hidden Vent

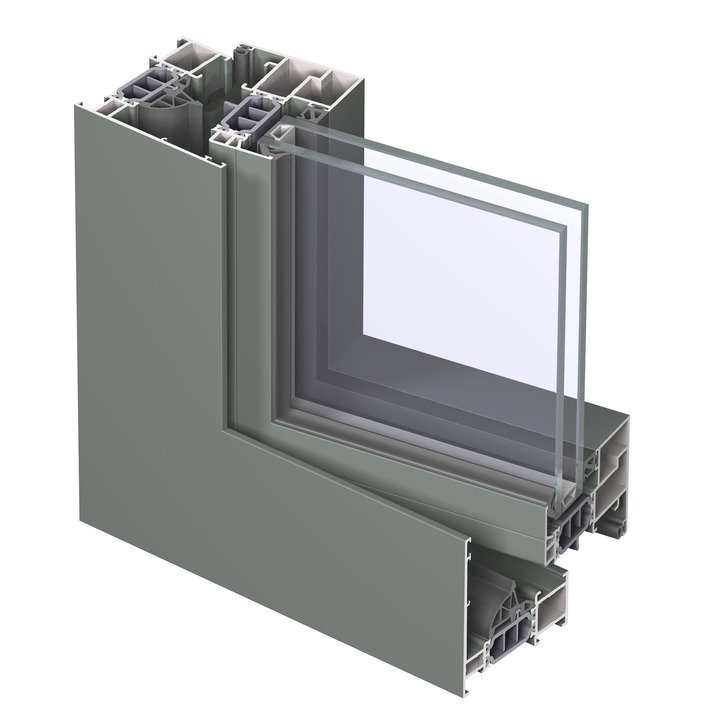

Concept System 77 ‘Hidden Vent’ window
Optimised safety and comfort

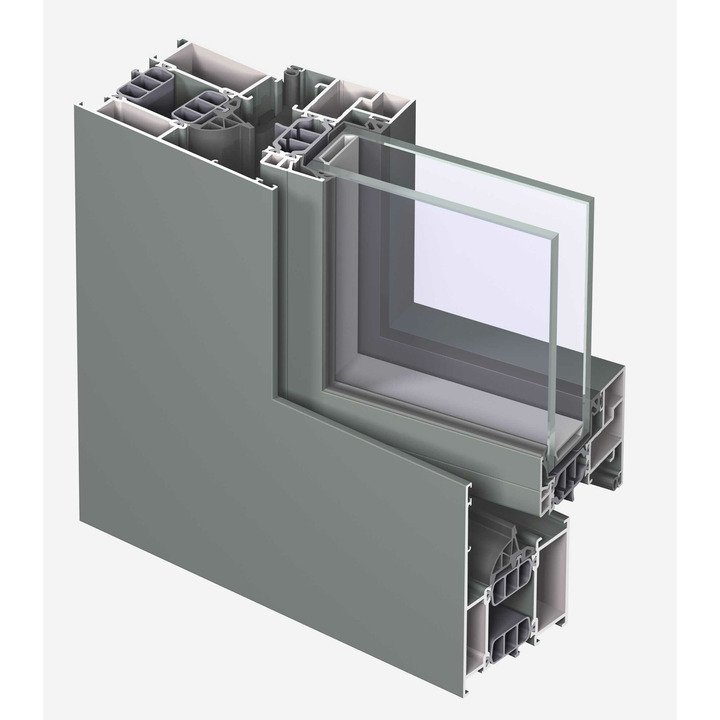

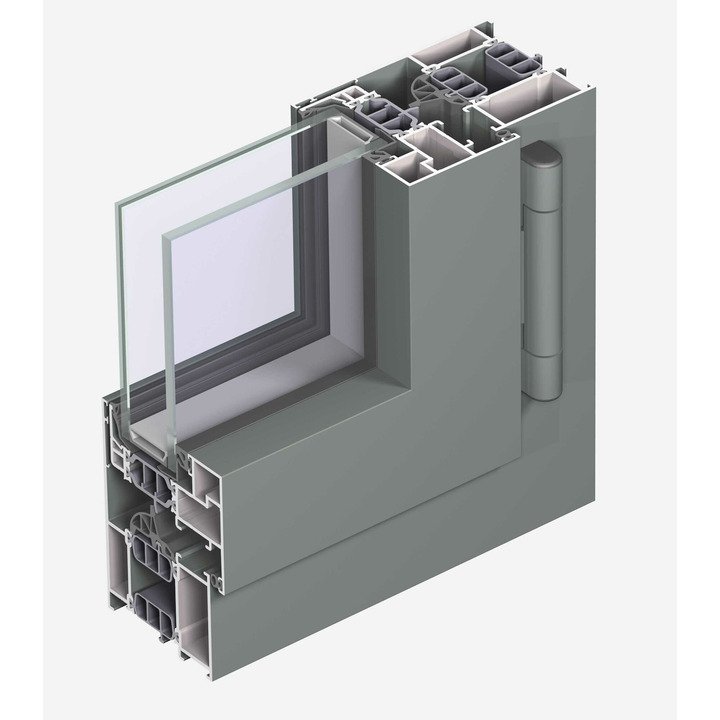

Concept System® 77 is a high insulating window system that meets elevated requirements regarding thermal insulation, stability and security. Anticipating on the thermal requirements, the insulation value (Uf) for the HI+ variant of this system goes down to 1.7 W/m²K for a standard opening window. The unique concept of the system makes it perfectly suitable for triple glazing and CS 77 even achieved the Swiss Minergie® component label.
The system’s performance regarding acoustics, water- and air tightness, but also for specific applications like Bullet – and Fire Resistance, meets the most severe European standards. Moreover, CS 77 windows are available in different burglar resistance levels (class 2 & 3) making it an extremely secure system.
To match the different building types, the system is available in a variety of aesthetic styles: Functional, Softline and Hidden Vent.
The CS 77 system includes the most complete range of solutions for all types of inward and outward opening windows. Ultimate combination possibilities, also with CS 77 doors, CP 130 sliding systems and Ventalis® ventilation units, makes CS 77 extremely suitable for all types of building concepts, even with the highest safety requirements.
Technical information
Min. Visible width frame-vent: inward opening 76 mm
Min. Visible width T-profile 101 mm
Max. height vent 2400 mm
Max. width vent 800 mm
Max. weight vent (element) 120 kg
Overall system depth frame 68 mm
Overall system depth vent 72.5 mm
Rebate height 18.5 mm
Min. Glass thickness 4 mm
Max. Glass thickness 48 mm
Min. Glass thickness vent 21 mm
Max. Glass thickness vent 48 mm
Comfort
Air tightness max. test pressure 4 (600 Pa)
Water tightness E750 (750 Pa)
Wind load resistance C4 (1600 Pa)
Acoustic performance 46 (-1;-4) dB
Energy
Thermal insulation (Uf)2,2 W/m²K
