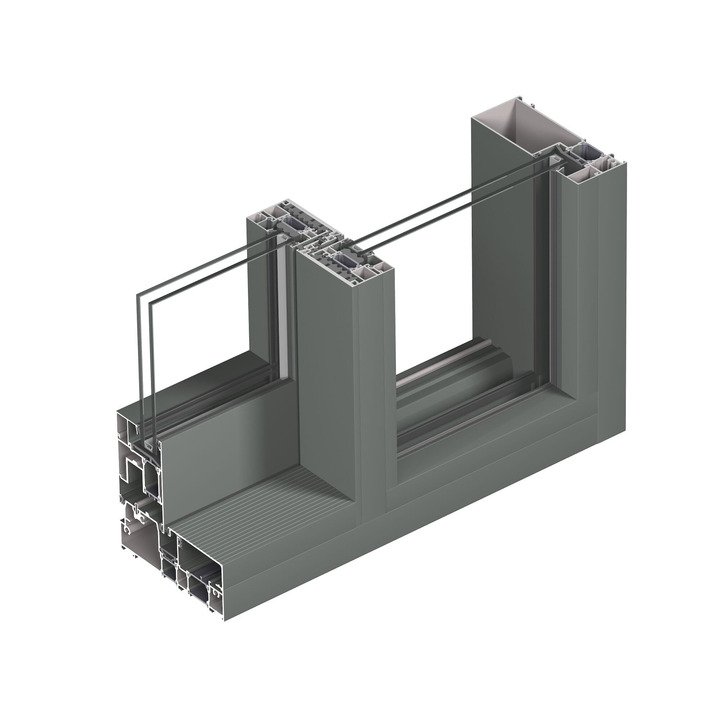

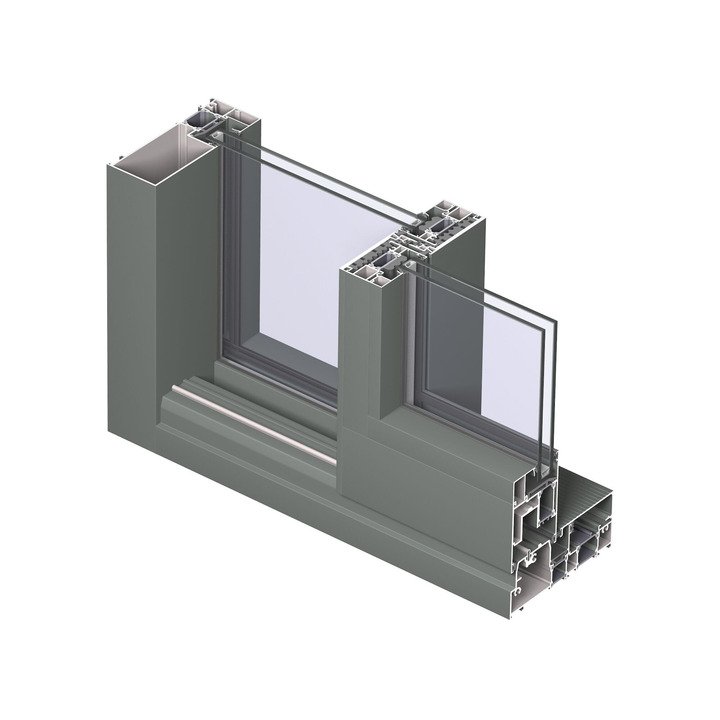

CP 155(-LS) Slim Chicane

Concept Patio 155 Lift & Slide, SlimChicane

Sophistication for quality and insulation

Concept Patio® 155 is a premium insulating slide and lift-slide system, designed to create maximal glass areas, combined with increased comfort. The system perfectly links up to the MasterLine 8 series.

With the CP 155(-LS) Slim Chicane, we introduced a sliding window with a meeting section of only 50mm width, which transforms our CP 155(-LS) into a modern design and makes it an elegant system, ready to meet today’s trends.

norail has even achieved the Swiss Minergie® component label.

CP 155 is available with various opening possibilities and the low threshold option offers a solution to improve the buildings accessibility. Optional automatic opening solutions guarantee a maximum of comfort.
The lift-slide system allows the creation of glazed doors with extreme dimensions and weights up to 400 kg. It also offers an aesthetical minimalistic middle section. Additionally, CP 155 can comply with burglar resistance class 2, offering a safe and secure solution.

Technical information

Properties

Min. Visible width T-profile 76 mm
Visible width meeting section 50 mm
Max. height vent 3000 mm
Max. width vent 2700 mm
Max. weight vent (element) 400 kg
Overall system depth frame 155 mm
Overall system depth vent 68 mm
Rebate height 25 mm
Visible height vent 102 mm
Min. Glass thickness 4 mm
Max. Glass thickness 52 mm
Thermal break Fibreglass Reinforced Polyamide Strips

Performance

Comfort
Air tightness max. test pressure 4 (600 Pa)
Water tightness 9A (600 Pa)
Wind load resistance C3 (1200 Pa)
Acoustic performance Rw (C; Ctr) = 35 (-2;-5) dB / 42 (-1;-3) dB, depending on glazing type dB

Safety
Burglar resistance RC2/WK2

Energy
Thermal insulation (Uf) 2,0 W/m²K

CP 155(-LS) Slim Chicane
