Hi-Finity Open Corner
The infinite view
Enjoy an infinite view with ultimate performances! The ultra-slim design of the Hi-Finity sliding system creates large transparent surfaces, with a light, sleek and elegant appearance.

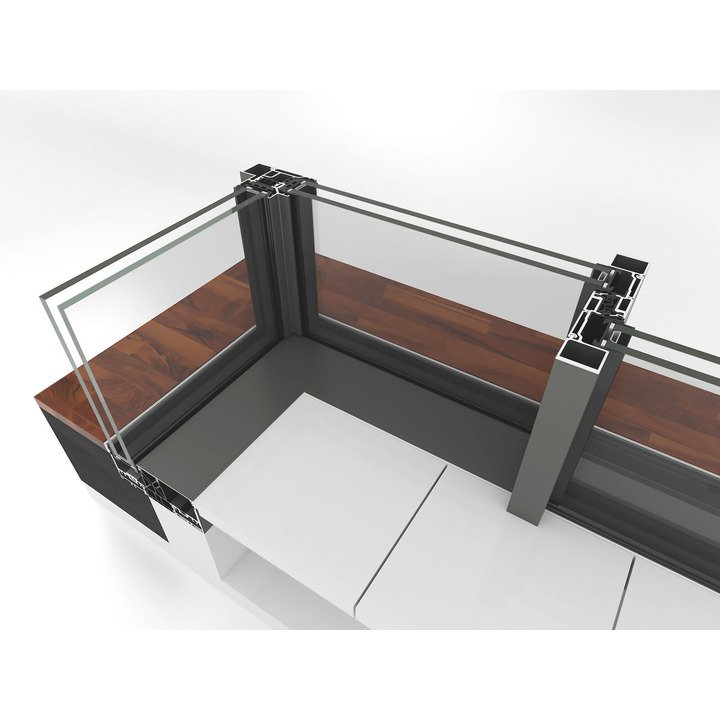

This extension of the Hi-Finity system expands the range with an open corner solution. It is characterized by the absence of a corner profile, allowing the sliding elements from both sides of a corner to open without obstacles. This solution addresses both accessibility and design needs, and can be combined with both double and triple glazing, and the standard threshold.
Technical information
Min. Visible width T-profile 35 mm
Visible width meeting section 35 mm
Max. height vent 4000 mm
Max. width vent 3500 mm
Max. weight vent (element) 1200 kg
Overall system depth frame 148 mm
Overall system depth vent 44 mm
Visible height vent 8 mm
Max. height element 4000 mm
Min. Glass thickness 36 mm
Max. Glass thickness 54 mm
Thermal break Fibreglass Reinforced Polyamide Strips
Comfort
Air tightness max. test pressure 4 (600 Pa)
Water tightness 7A (300 Pa)
Wind load resistance C2 (800 Pa)
Energy
Thermal insulation (Uf) 1,4 W/m²K
