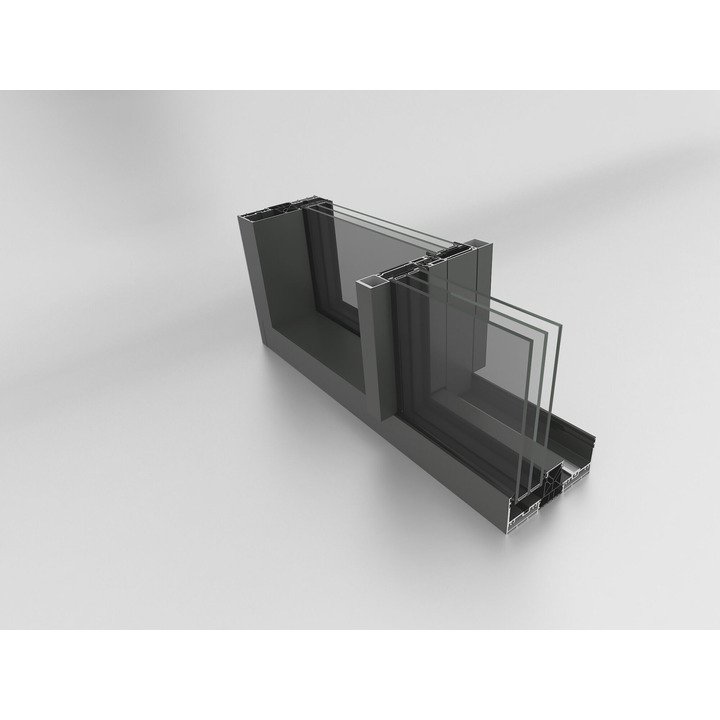

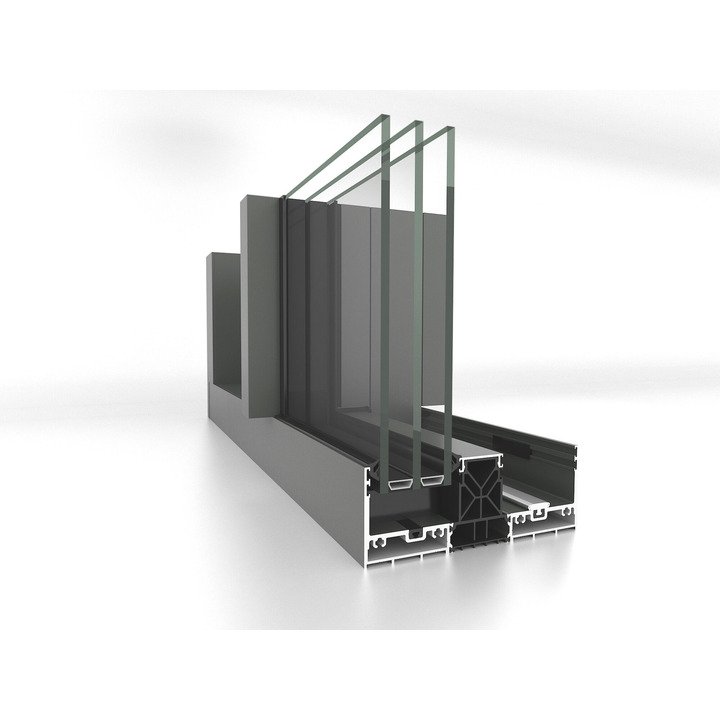

Hi-Finity triple glazed
The infinite view
Enjoy an infinite view with ultimate performances! The ultra-slim design of the Hi-Finity sliding system creates large transparent surfaces, with a light, sleek and elegant appearance.
This fully transparent and accessible sliding window seamlessly extends the house’s interior to the outside. Despite the minimal visual sidelines, the systems high strength allows Hi-Finity to carry the weight of a large sliding glass panes up to 750 kilograms. Fixed panels up to 1200 kg.
This in combination with the thermal performance and the minimalistic look makes this product the best solution for low-energy contemporary architecture.
For a higher level of comfort a concealed motor allows you to open the sashes with the push of a button, or by connecting the motor to your home automation system. This high performance motor guarantees optimum convenience during use and is a safe and reliable solution.
Technical information
Min. Visible width T-profile 35 mm
Visible width meeting section 35 mm
Max. height vent 4000 mm
Max. width vent 3500 mm
Max. weight vent (element) 1200 kg
Overall system depth frame 180 mm
Overall system depth vent 60 mm
Visible height vent 10 mm
Max. height element 4000 mm
Min. Glass thickness 52 mm
Max. Glass thickness 54 mm
Thermal break Fibreglass Reinforced Polyamide Strips
Comfort
Air tightness max. test pressure 4 (600 Pa)
Water tightness E750 (750 Pa)
Wind load resistance C5 (2000 Pa)
Acoustic performance Rw (C; Ctr) = 46 (-1;-3) dB, depending on glazing type dB
Safety
Burglar resistance RC2/WK2
Energy
Thermal insulation (Uf) 1,4 W/m²K
