E85
Façades / Curtain wall systems
Air permeability:
Class AE
Water tightness:
Class RE 900
Resistance to wind load:
design load- 1600Pa, safety load- 2400Pa
Impact resistance:
class I5/E5
Thermal transmittance:
Uf = 1,6 W/m2.K
Sound insulation:
Rw=44dB
Bullet resistance:
Class FB6NS
Burglar resistance:
RC4
E85

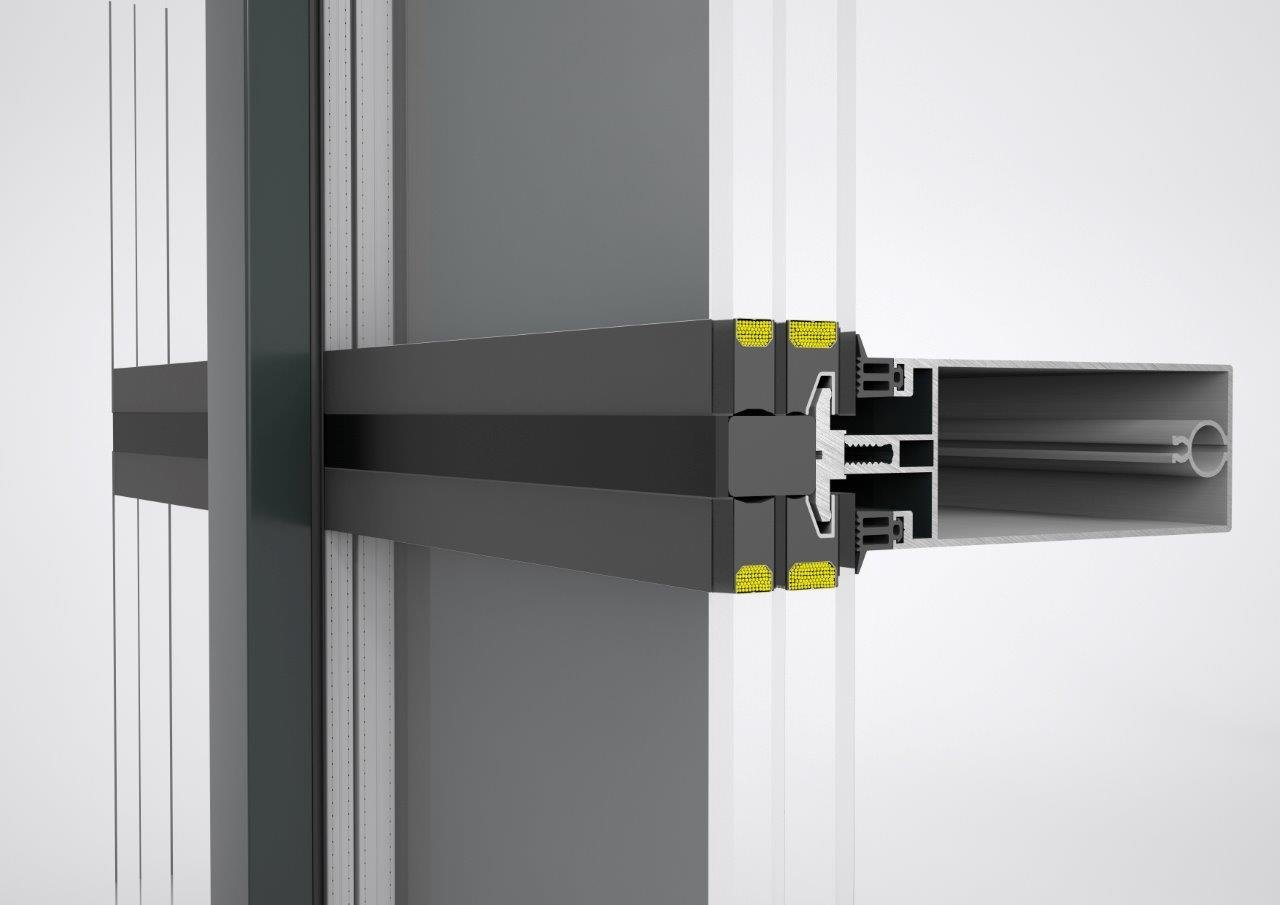

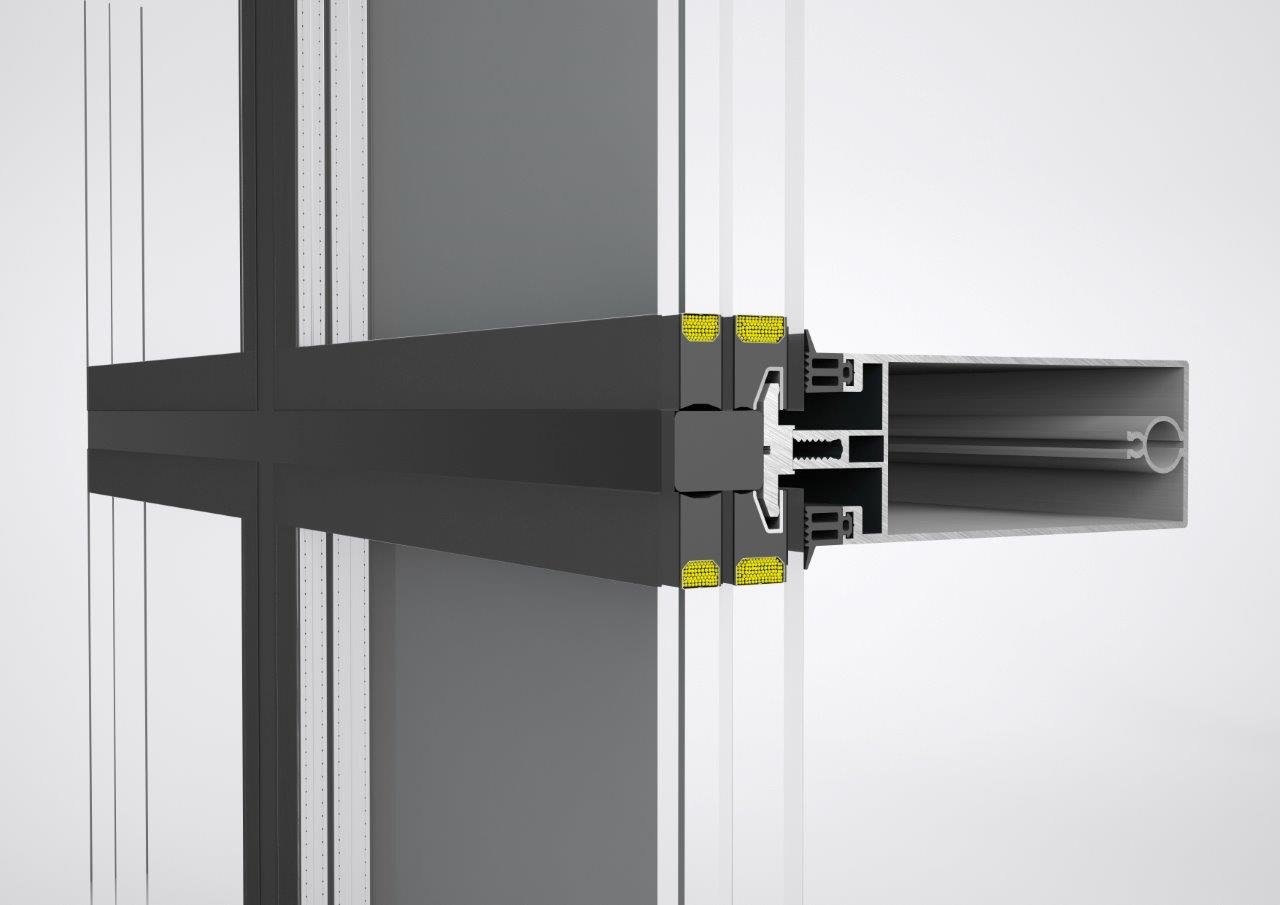

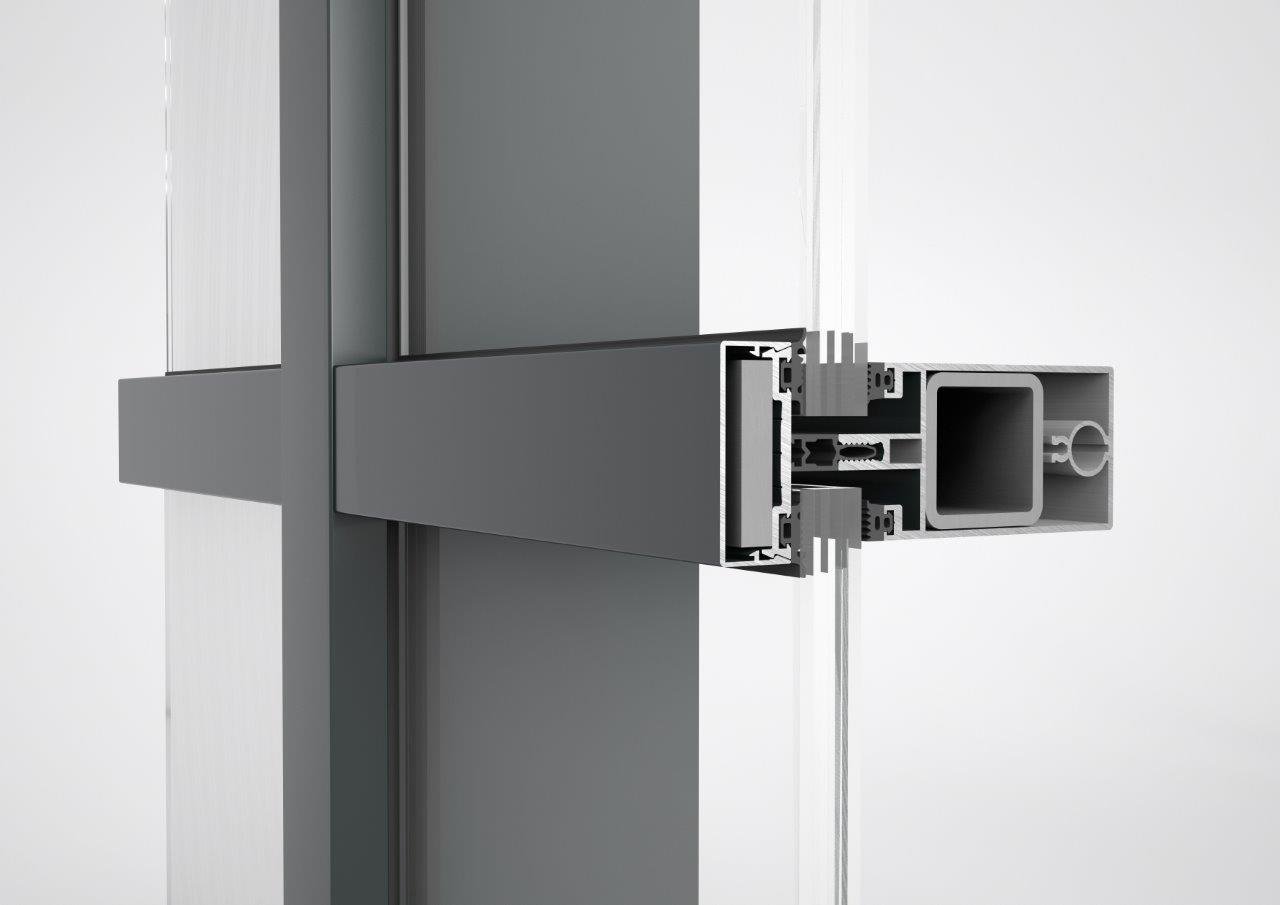

Mullion transom curtain wall system with 50 mm profiles front view.
Suitable for all types of buildings (low, mid and high-rise).
With its wide variety of profiles this versatile curtain wall system can be adapted to meet the requirements of any project.
Suitable for all types of buildings (low, mid and high-rise).
With its wide variety of profiles this versatile curtain wall system can be adapted to meet the requirements of any project.
Benefits
- Broad range of profiles allows adaptation to the specifics of the project.
- Easy and fast manufacturing, installation and glazing.
- Small 50 mm front view of the profiles allows maximum natural lighting inside the building.
Features
- Cover cap, silicone gap and combined solutions.
- Double and triple glazing options.

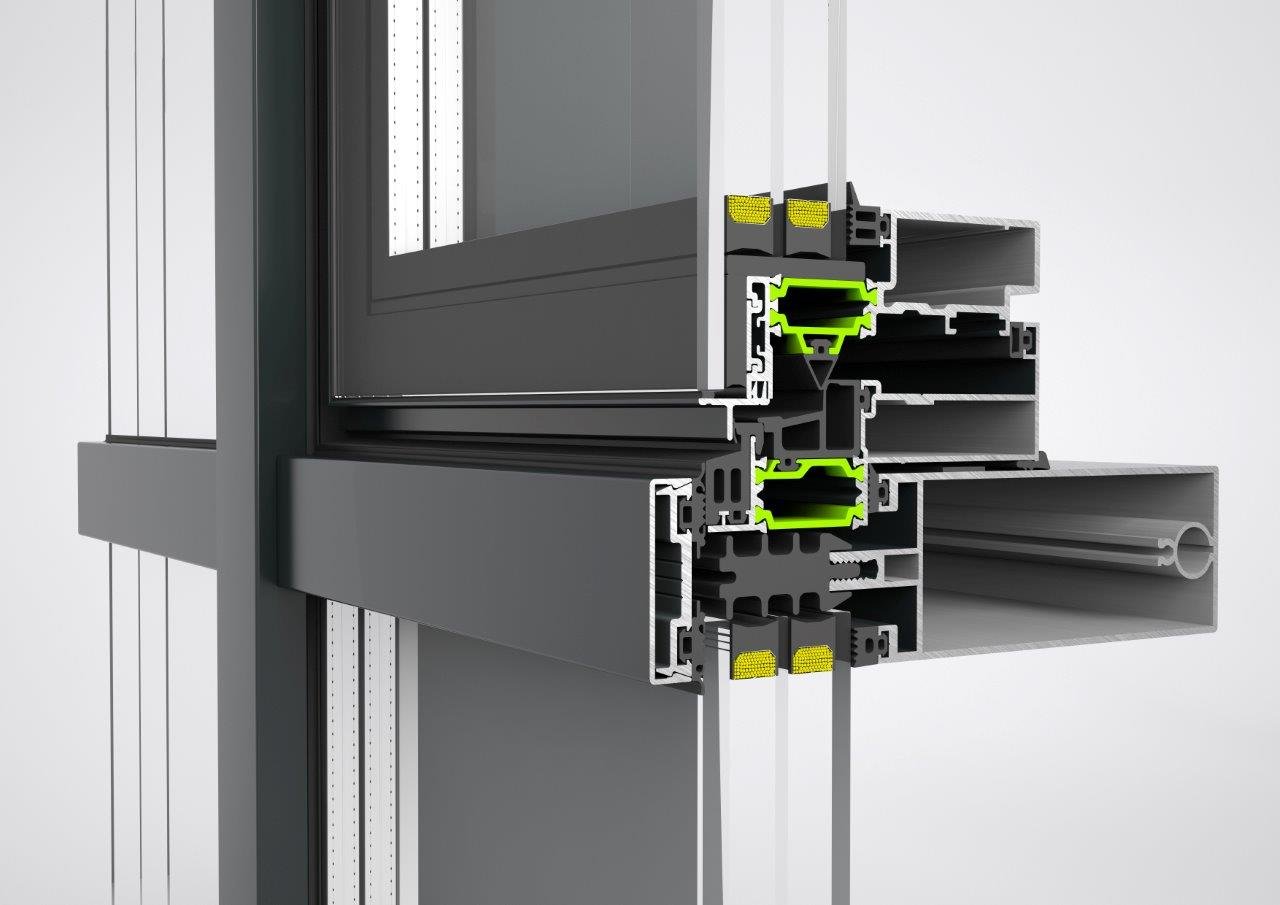

- Parallel and projected opening.
- Roof window solution. *Straightforward incorporation of all ETEM systems, both windows and doors.
