MasterLine 8 Pivot Door
The new way of entering
Reynaers MasterLine 8 doors represent the best doors the market can offer and deliver maximum comfort and security for the user, while allowing substantial architectural freedom with numerous design variants and scoring high on energy-efficiency.
The new MasterLine 8 pivot door are a versatile solution to make an architectural statement in any residential of public building.

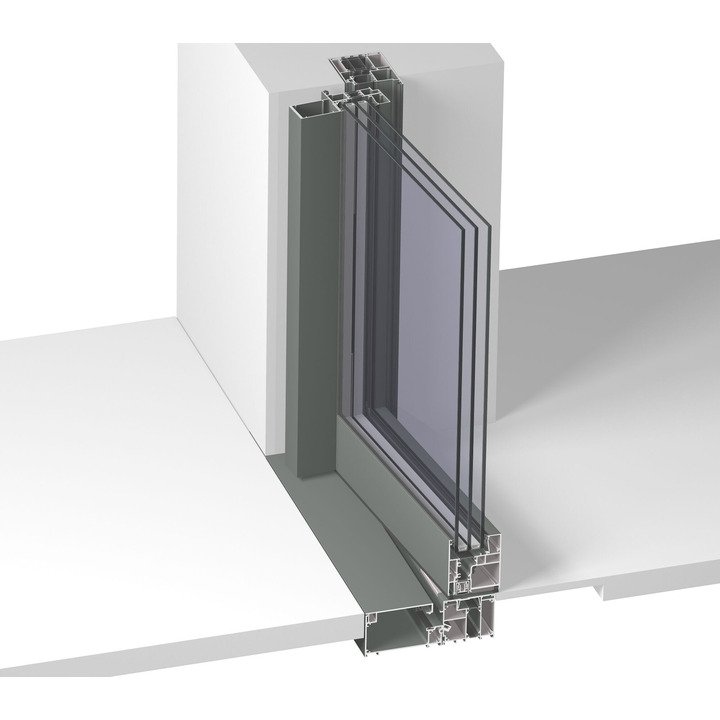

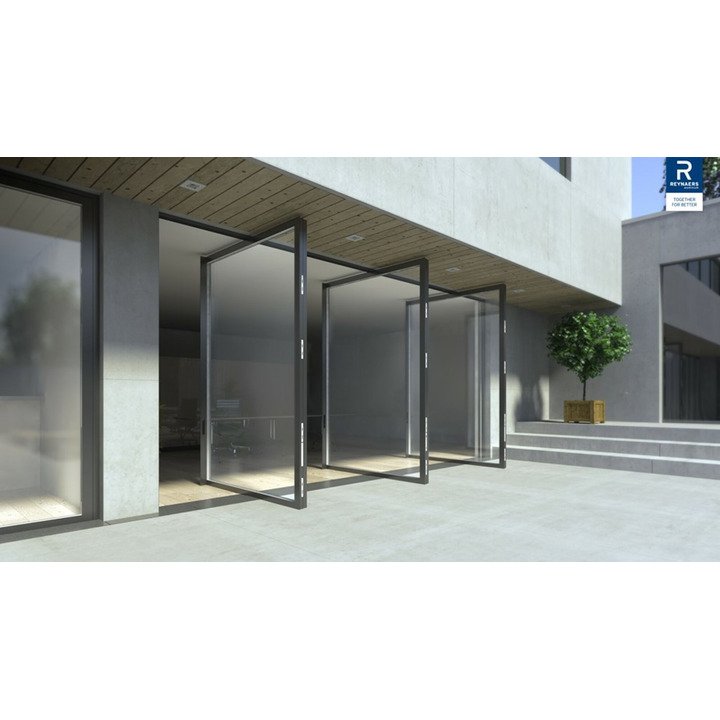

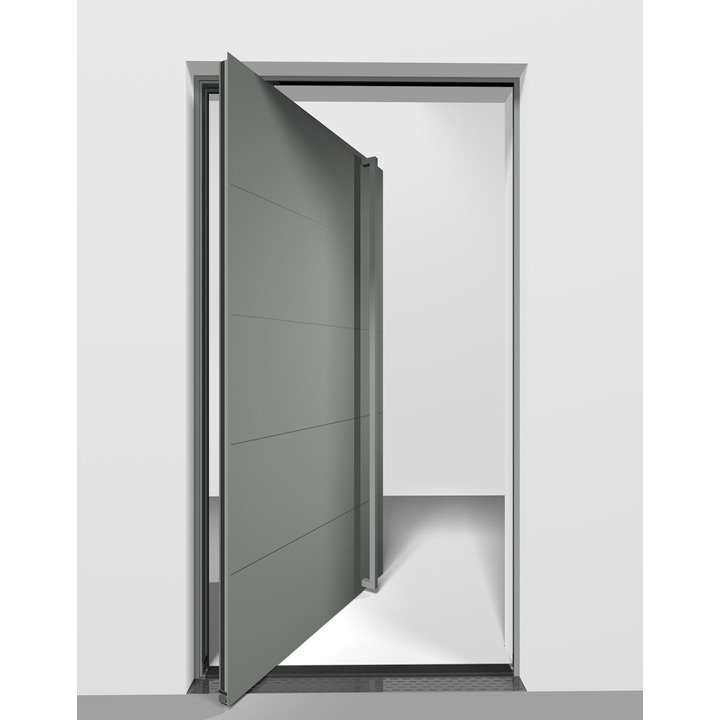

The applicability of MasterLine 8 pivot doors is endless: slim profile design with heights up to 4m with the ‘XL’ variant, unlimited multi-leaf configurations in the ‘Landscape’ variant for maximum outdoor living experience, or the ‘Residential’ door with burglar resistance class 2 and excellent weather performances.
Technical information
Min. Visible width frame-vent: inward opening 129 mm
Min. Visible width frame: outward opening 68.5 mm
Min. Visible width frame-vent: outward opening 155 mm
Min. Visible width T-profile 80 mm
Max. height vent 4000 mm
Max. width vent 2500 mm
Max. weight vent (element) 500 kg

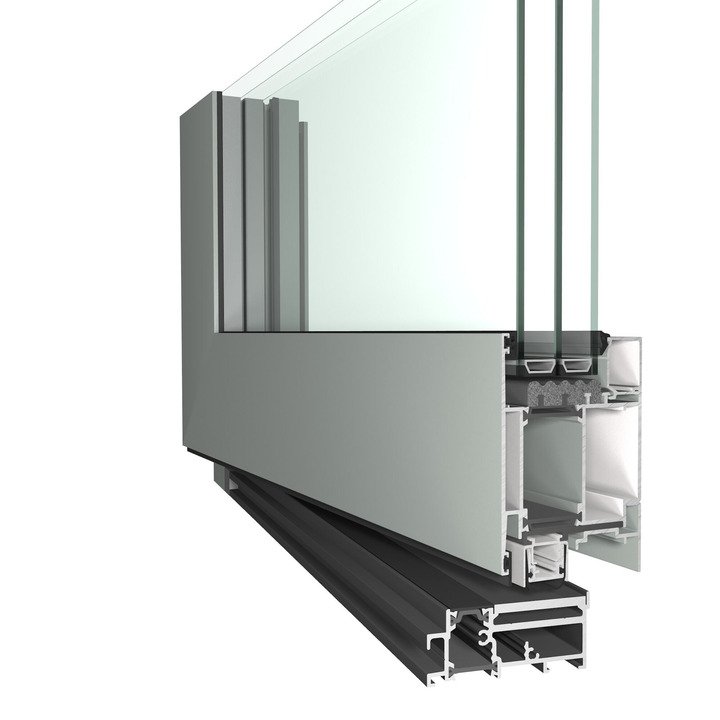

Overall system depth frame 77 mm
Overall system depth vent 77 mm
Rebate height 27 mm
Min. Glass thickness 10 mm
Max. Glass thickness 62 mm
Min. Glass thickness vent 10 mm
Max. Glass thickness vent 62 mm
Glazing method Dry glazing with EPDM or neutral silicones
Thermal break Fibreglass Reinforced Polyamide Strips
Omega Shaped Fibreglass
Comfort
Air tightness max. test pressure 4 (600 Pa)
Water tightness 4A (150 Pa)
Wind load resistance C3 (1200 Pa)
Safety
Burglar resistance RC2/WK2
Energy
Thermal insulation (Uf) 1,5 W/m²K
