MasterLine 8 Balcony Door
Rebate Doors
Crafted for masters

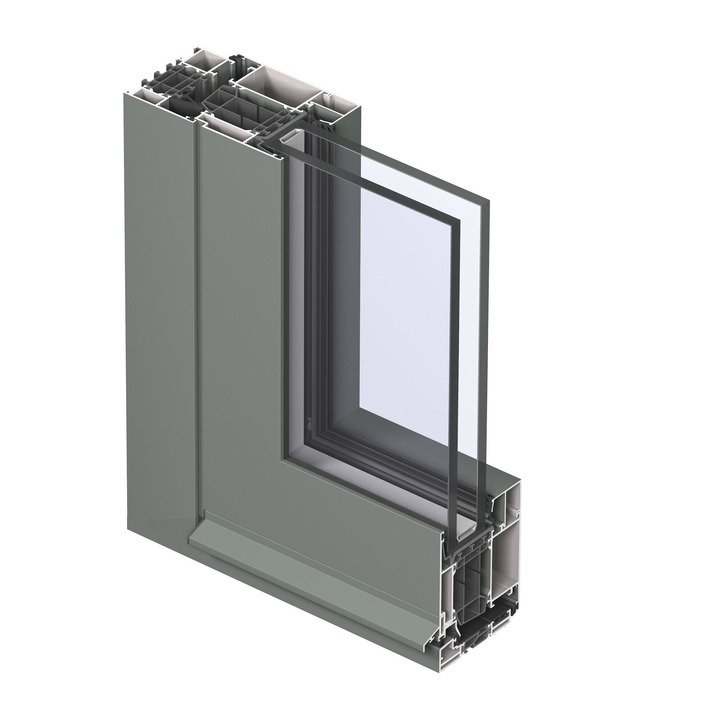

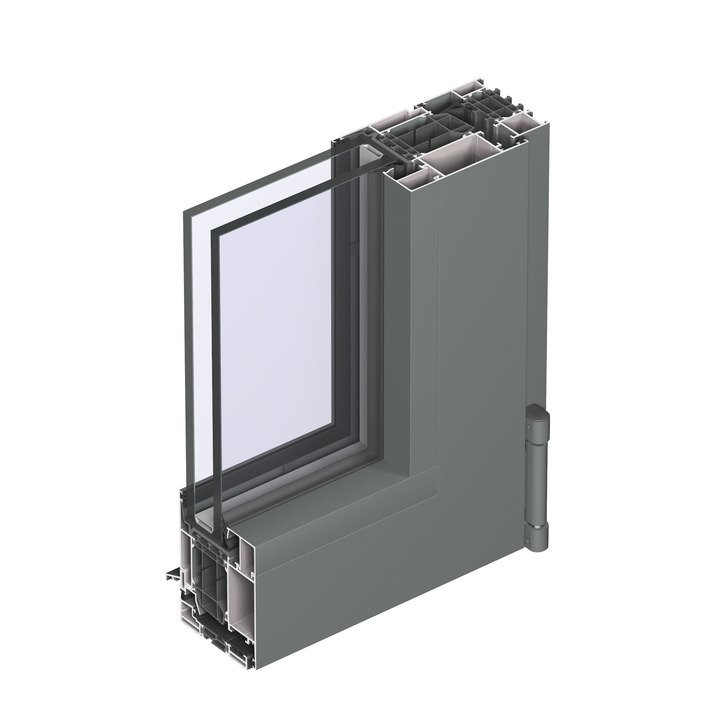

MasterLine 8 Rebate Doors are available with a brush, an automatic drop seal or with a low threshold of 20mm for improved weather tightness. The balcony doors are available as single or double doors, both inward and outward opening. It is possible to use window or door hardware on the doors, in this way it is possible to open and lock the doors from both inside and outside as well. The doors are available in 3 designs: ‘Functional’, ‘Renaissance’ and ‘Deco’.

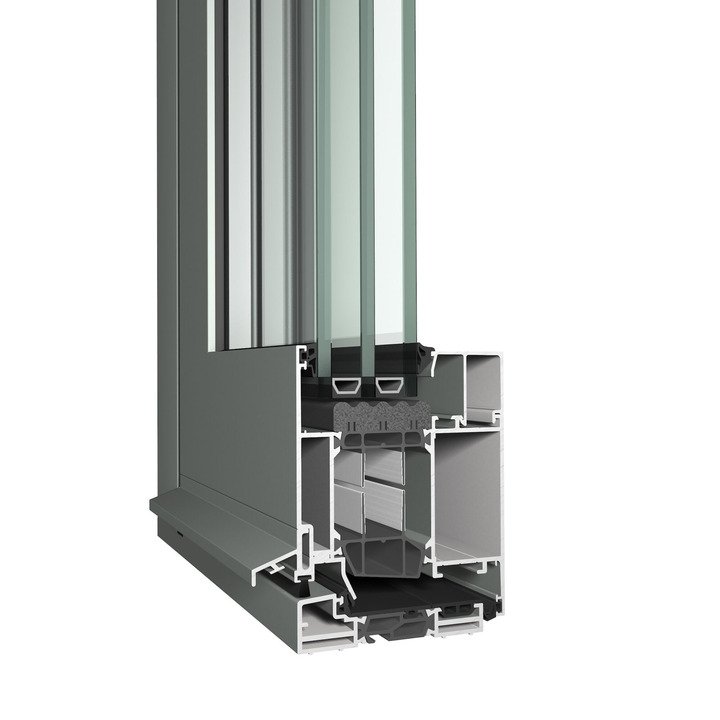

MasterLine 8 balcony doors features 3 different levels of insulation for high insulated, low energy and even passive houses. These different levels of insulation are achieved by the integration of new and clever materials.
Technical information
Min. Visible width frame-vent: inward opening 97 mm
Min. Visible width frame: outward opening 27 mm
Min. Visible width frame-vent: outward opening 145 mm
Min. Visible width T-profile 80 mm
Max. height vent 2400 mm
Max. width vent 1000 mm
Max. weight vent (element) 130 kg
Overall system depth frame 77 mm
Overall system depth vent 87 mm
Rebate height 27 mm
Min. Glass thickness 4 mm
Max. Glass thickness 58 mm
Min. Glass thickness vent 13 mm
Max. Glass thickness vent 68 mm
Comfort
Air tightness max. test pressure 4 (600 Pa)
Water tightness 9A (600 Pa)
Wind load resistance C4 (1600 Pa)
Energy
Thermal insulation (Uf) 0,87 W/m²K
