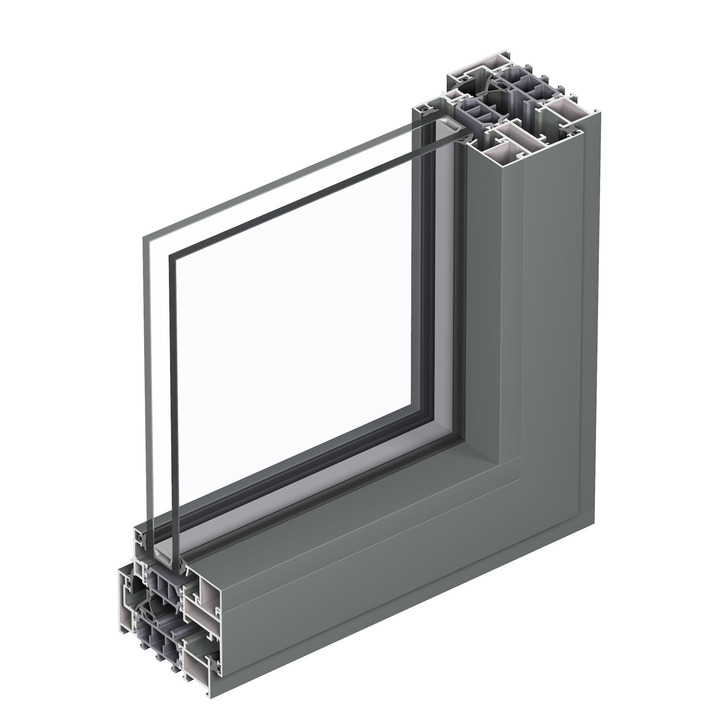

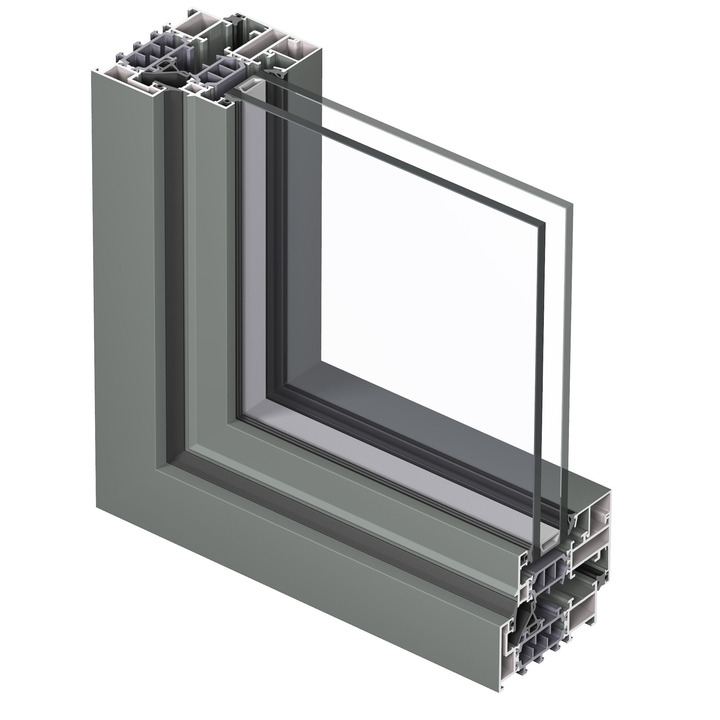

SlimLine 38 Cubic
SlimLine 38 ‘Cubic’ door
Light, Elegance and Comfort
SlimLine 38 is a highly insulated system inward and outward opening windows and doors, which combines elegance and comfort, with a unique design. This special slender steel look is the perfect solution for modern architecture and renovation of steel-framed windows, respecting the original design but offering a thermally improved solution.
In combination with its superior insulation capabilities, the system provides the perfect harmony between durable material, clean design and demanding architectural challenges.
Technical information
Min. Visible width frame: inward opening 38.5 mm
Min. Visible width frame-vent: inward opening 101.5 mm

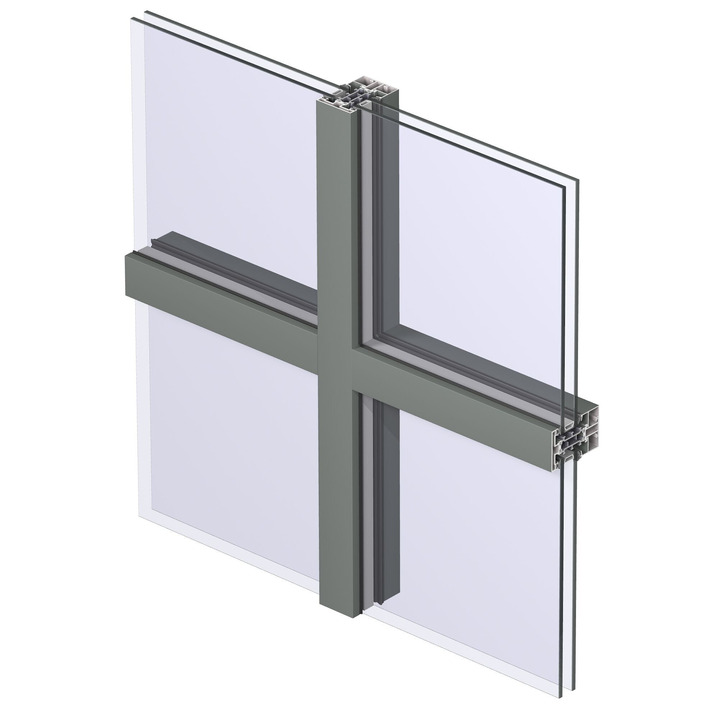

Min. Visible width T-profile 48 mm
Max. height vent 2500 mm
Max. width vent 1250 mm

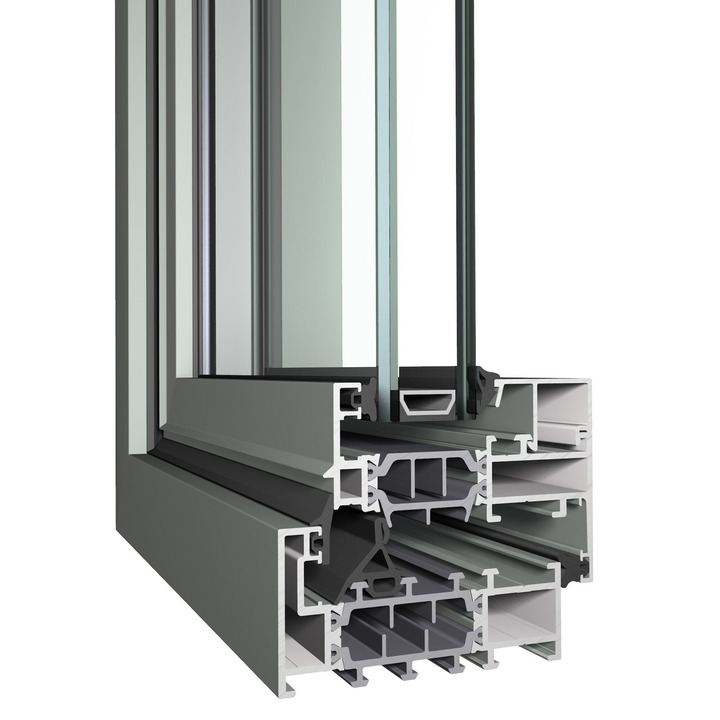

Overall system depth frame 99 mm
Overall system depth vent 86 mm
Rebate height 13.5 mm
Min. Glass thickness 16 mm
Max. Glass thickness 55 mm
Min. Visible width frame-vent: inward opening 101.5 mm
Min. Visible width T-profile 48 mm
Max. height vent 2500 mm
Max. width vent 1250 mm
Overall system depth frame 99 mm
Overall system depth vent 86 mm
Rebate height 13.5 mm
Min. Glass thickness 16 mm
Max. Glass thickness 55 mm
Comfort
Air tightness max. test pressure 3 (600 Pa)
Water tightness 4A (150 Pa)
Wind load resistance C3 (1200 Pa)
Safety
Burglar resistance RC2/WK2
Energy
Thermal insulation (Uf) 1,9 W/m²K
