CS 77 Panel Door
Concept System 77 panel door
Integration of performance and aesthetics

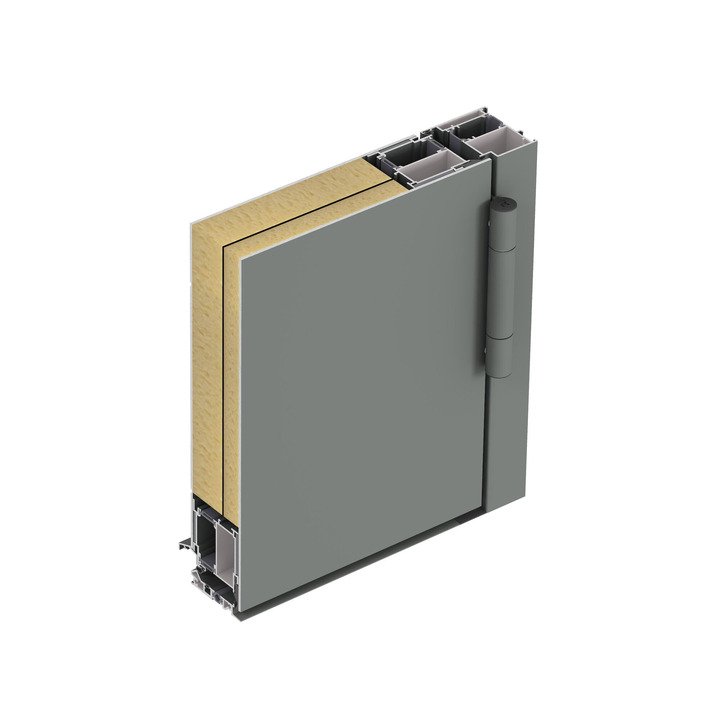

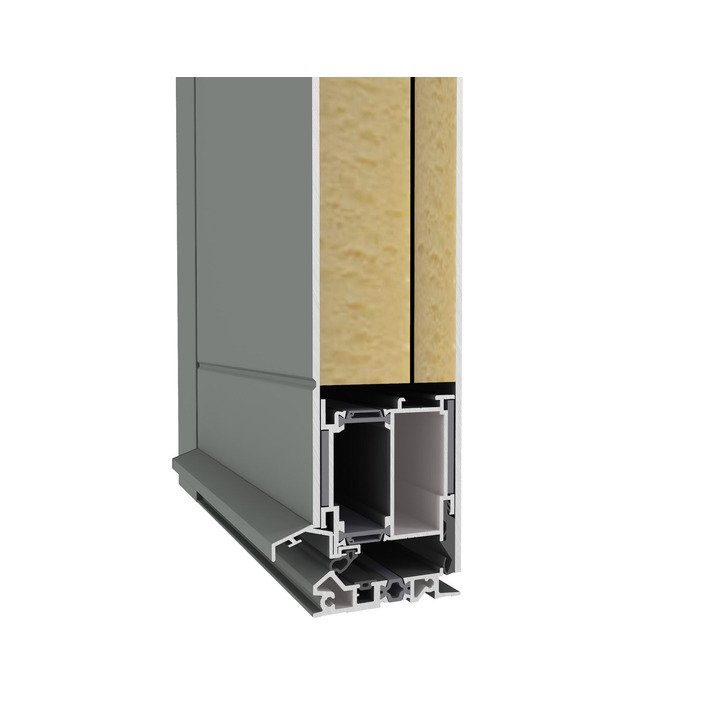

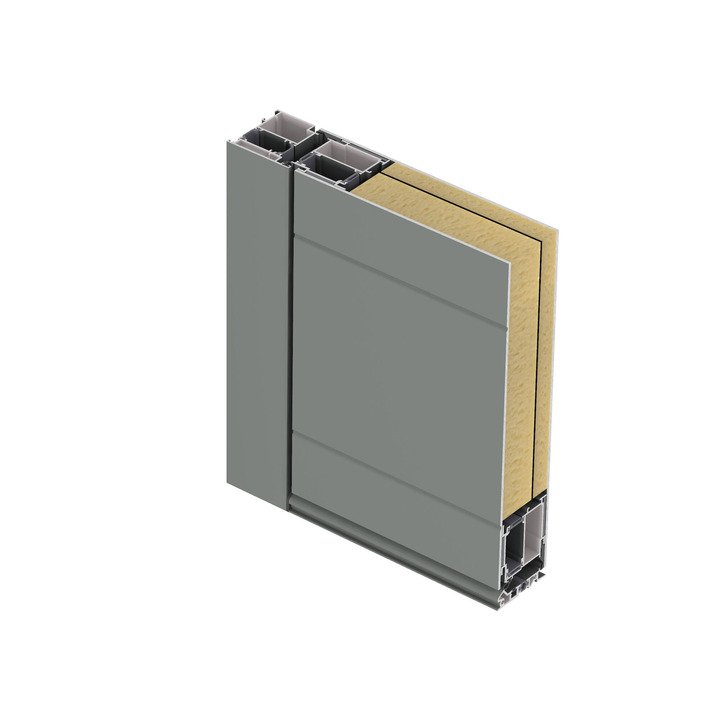

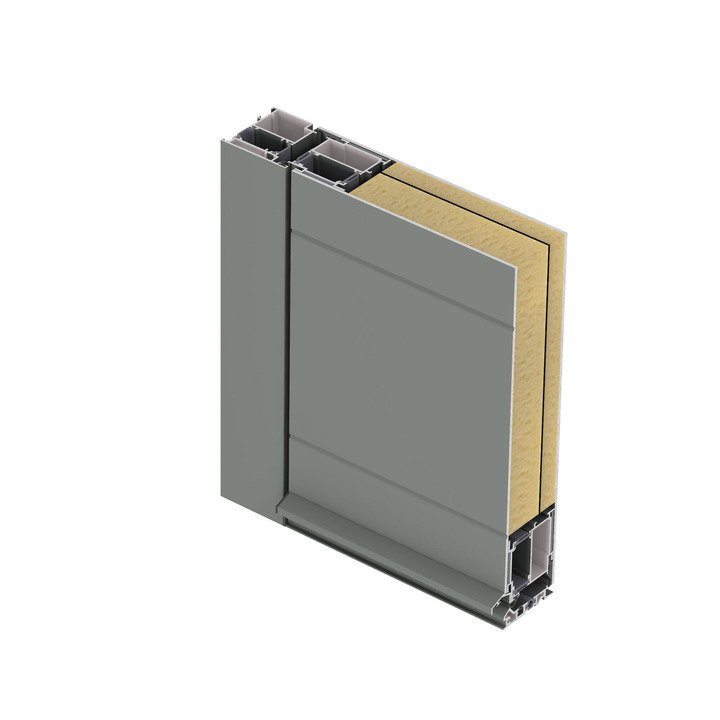

The Concept System® 77 panel doors are perfectly suited for use as entrance doors. The doors offer panels flush with the frame on the interior as well as the exterior side of the door, possibility to include spy windows and a range of ergonomic solutions such as a fingerscanners, e-keys and motorised locks. With the excellent thermal and weather performances, these specifications make the panel doors the ideal solution for domestic entrance doors.
Technical information
Min. Visible width frame: inward opening 68 mm
Min. Visible width frame: outward opening 42 mm
Max. height vent 3000 mm
Max. width vent 1400 mm
Overall system depth frame 68 mm
Overall system depth vent 68 mm
Rebate height 25 mm
Min. Glass thickness 4 mm
Max. Glass thickness 54 mm
Min. Visible width frame: outward opening 42 mm
Max. height vent 3000 mm
Max. width vent 1400 mm
Overall system depth frame 68 mm
Overall system depth vent 68 mm
Rebate height 25 mm
Min. Glass thickness 4 mm
Max. Glass thickness 54 mm
Comfort
Air tightness max. test pressure 4 (600 Pa)
Water tightness 7A (300 Pa)
Wind load resistance C3 (1200 Pa)
